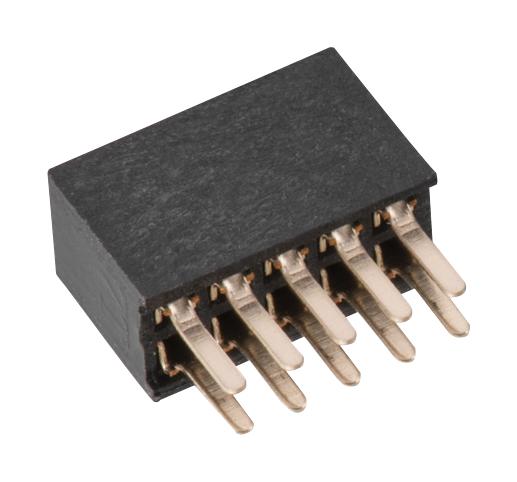

WURTH ELEKTRONIK 62200821821 Dual Socket Connector
The WR-PHD THT Straight Dual Socket from Wurth Elektronik is a high-quality connector designed for reliable electronic applications. It features a 1.27 mm pitch, gold-plated copper alloy contacts, and a durable design supporting 500 mating cycles. The socket operates within -40°C to +105°C, Rated Current is 1A, and it withstands voltages up to 100V. Suitable for low-profile, high-reliability connections in electronic and communication equipment, this socket ensures consistent performance with UL94V-0 rated insulation and precise pin spacing.
WURTH ELEKTRONIK 62200821821 Dual Socket Connector Specifications:
- Pitch: 1.27 mm
- Pins: 8
- Pin to Pin (Middle): 3.81 mm
- Length L: 5.08 mm
- Material: Copper Alloy with Gold Plating
- Insulator Material: PAST, Flammability Rating UL94V-0, Color Black
- Operating Temperature: -40°C to +105°C
- Rated Current: 1A
- Working Voltage: 100V AC
- Withstanding Voltage: 500V for 1 min
- Contact Resistance: Max. 20 mΩ
- Insulation Resistance: Min. 1000 MΩ
- Durability: 500 mating cycles
Buy the Wurth Series Dual Socket Connector: 62200821821
Secure your electronic assembly with the high-quality Dual Socket Connector featuring a 1.27 mm pitch, gold-plated contacts, UL94V-0 rated insulation, and a robust design supporting 500 mating cycles. Perfect for low-profile, high-reliability connections in communication, automation, and electronic equipment, this connector ensures consistent performance and easy installation. Designed for engineers and technicians seeking durable and precise connectors, it provides a dependable solution for complex electronics requiring reliable signal transmission and mechanical stability. Purchase online now for fast delivery and technical support.
Order your Wurth Series Dual Socket 62200821821 today and ensure reliable, compact connections for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 62200821821?
You can click on the BUY or RFQ button to purchase 62200821821 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 62200821821?
You can download the 62200821821 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 62200821821?
WURTH ELEKTRONIK
