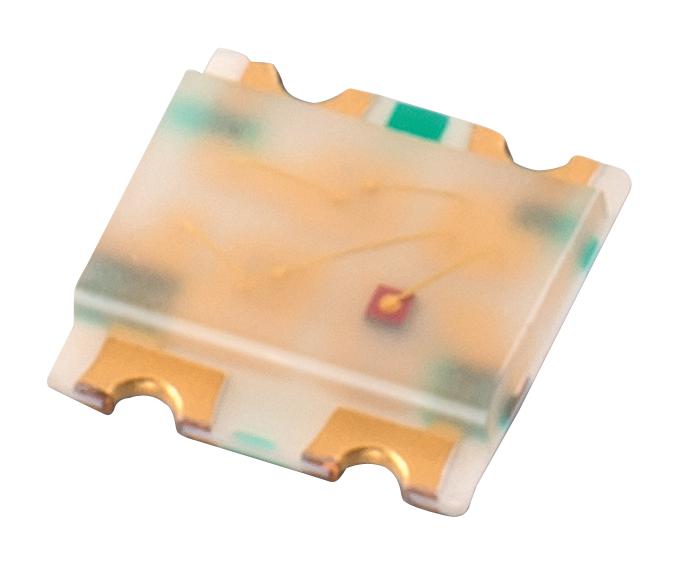

WURTH ELEKTRONIK 150066RG54050 Bi-Color Chip LED
The Würth Elektronik 150066RG54050 is a surface-mount bi-color LED designed for a wide range of electronic applications. This diffused LED chip offers both red and green light emission, making it suitable for indicator lights, status displays, and decorative lighting. It operates within a temperature range of -40°C to +85°C and is RoHS compliant, ensuring environmental responsibility. The component is not intended for use in safety-critical applications without proper evaluation and agreement.
WURTH ELEKTRONIK 150066RG54050 Bi-Color Chip LED Specifications:
- Dimensions: 0.4 ±0.1 x 0.5 x 0.4 mm
- Recommended Land Pattern: 0.5 x 1 x 0.4 mm
- Power Dissipation (Red): 48 mW
- Power Dissipation (Green): 72 mW
- Peak Forward Current: 40 mA
- Continuous Forward Current: 20 mA
- Reverse Voltage: 5 V
- Junction Temperature: 115 °C
- Chip Technology: AlInGaP + InGaN
- Emitting Color: Red & Green
- Lens Type: Diffused
- Scale: -15:1
- Polarity Operating Temperature: -40 up to +85 °C
- Storage Conditions (in original packaging): < 40 °C ; < 90 % RH
- Storage Conditions (for single parts): -40 up to +100 °C
- Moisture Sensitivity Level (MSL): 3
- Peak Wavelength (Red): 632 nm
- Peak Wavelength (Green): 520 nm
- Dominant Wavelength (Red): 624 nm
- Dominant Wavelength (Green): 525 nm
- Luminous Intensity (Red): 45-180 mcd
- Luminous Intensity (Green): 110-230 mcd
- Forward Voltage (Red): 2 - 2.4 V
- Forward Voltage (Green): 3.3 - 3.9 V
- Spectral Bandwidth (Red): 20 nm
- Spectral Bandwidth (Green): 30 nm
- Reverse Current: 10 µA
- Viewing Angle Phi 0°: 130°
- RoHS Approval: Compliant [ 2011/65/EU&2015/863 ]
- REACh Approval: Conform or declared [ (EC)1907/2006 ]
- Halogen Free: Conform [ IEC 61249-2-21 ]
