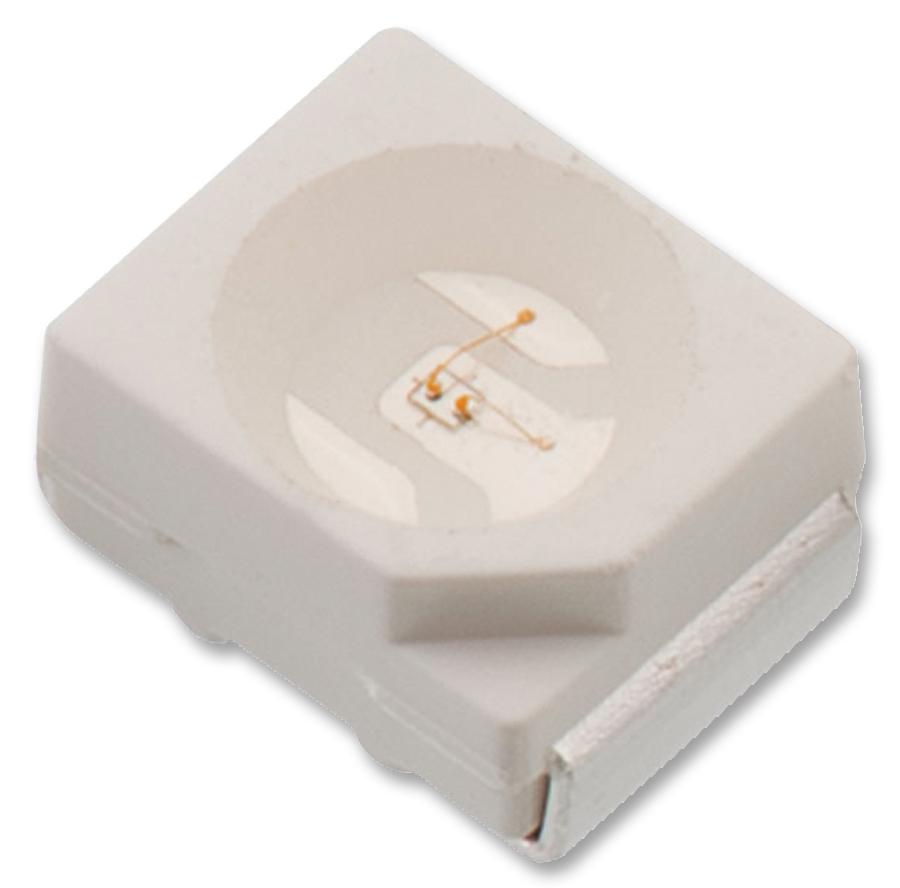

WURTH ELEKTRONIK 150141VS73100 LED Mono-Color
This WL-SMTW SMD TOP LED mono-color waterclear offers reliable performance with a peak wavelength of 572 nm, luminous intensity ranging from 45 to 90 mcd, and a forward voltage of 20 to 26 V at 20 mA. Designed for general electronic equipment, it features a size of 3528, an operating temperature of -40°C to +85°C, and an ESD threshold of 2000 V. The LED's spectral bandwidth is 15 nm, with a viewing angle of 120°, ensuring excellent light emission and durability for various electronic applications.
WURTH ELEKTRONIK 150141VS73100 LED Mono-Color Specifications:
- Size: 3528
- Peak Wavelength: 572 nm at 20 mA
- Dominant Wavelength: 570 nm at 20 mA
- Luminous Intensity: 45 to 90 mcd at 20 mA
- Forward Voltage: 20 to 26 V at 20 mA
- Spectral Bandwidth: 15 nm at 20 mA
- Viewing Angle: 120°
- Operating Temperature Range: -40°C to +85°C
- Reverse Current: 10 µA at 5 V
- ESD Threshold: 2000 V human body model
- Maximum Power Dissipation: 78 mW
- Peak Forward Current Duty: 100 mA at 1 kHz
- Continuous Forward Current: 30 mA
- Maximum Reverse Voltage: 5 V
- Moisture Sensitivity Level: 3
Buy the Buy WURTH ELEKTRONIK LED Part Number 150141VS73100 Online
Purchase the WURTH ELEKTRONIK LED Part Number 150141VS73100 online today and enjoy premium quality, durability, and precise light emission for your electronic applications. This waterclear, mono-color LED, sized at 3528, features a peak wavelength of 572 nm, luminous intensity of 45 to 90 mcd, and operates reliably within a temperature range of -40°C to +85°C. Its spectral bandwidth of 15 nm and viewing angle of 120° make it perfect for diverse electronic projects that demand consistent and bright illumination. Secure your supply now for dependable performance.
Order your WURTH ELEKTRONIK LED Part Number 150141VS73100 today and enhance your electronic projects with high-quality, reliable mono-color LED lighting.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 150141VS73100?
You can click on the BUY or RFQ button to purchase 150141VS73100 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 150141VS73100?
You can download the 150141VS73100 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 150141VS73100?
WURTH ELEKTRONIK
