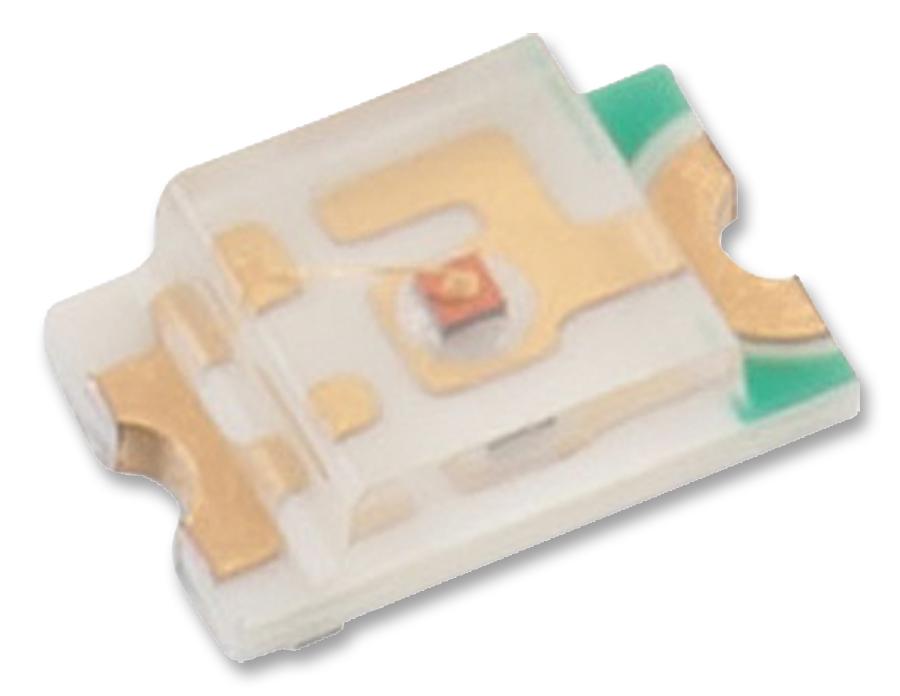

WURTH ELEKTRONIK 150080BS75000 Blue SMD Chip LED
The WURTH ELEKTRONIK 150080BS75000 is a compact, surface-mount blue LED designed for a wide range of applications in general electronic equipment. Utilizing InGaN technology, this LED offers efficient light emission through a waterclear lens. It's suitable for applications requiring a small footprint and reliable performance within an operating temperature range of -40°C to +85°C. This component is not intended for use in safety-critical applications without thorough evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 150080BS75000 Blue SMD Chip LED Specifications:
- Chip Technology: InGaN
- Emitting Color: Blue
- Lens Type: Chip LED
- Power Dissipation: 105 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body Modell: 1000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Peak Wavelength: 465 nm
- Dominant wavelength: 470 nm
- Luminous Intensity: 90-145 mcd
- Forward Voltage: 3.2-3.5 V
- Spectral Bandwidth: 25 nm
- Reverse Current: 10 μA
- Viewing Angle: 140°
