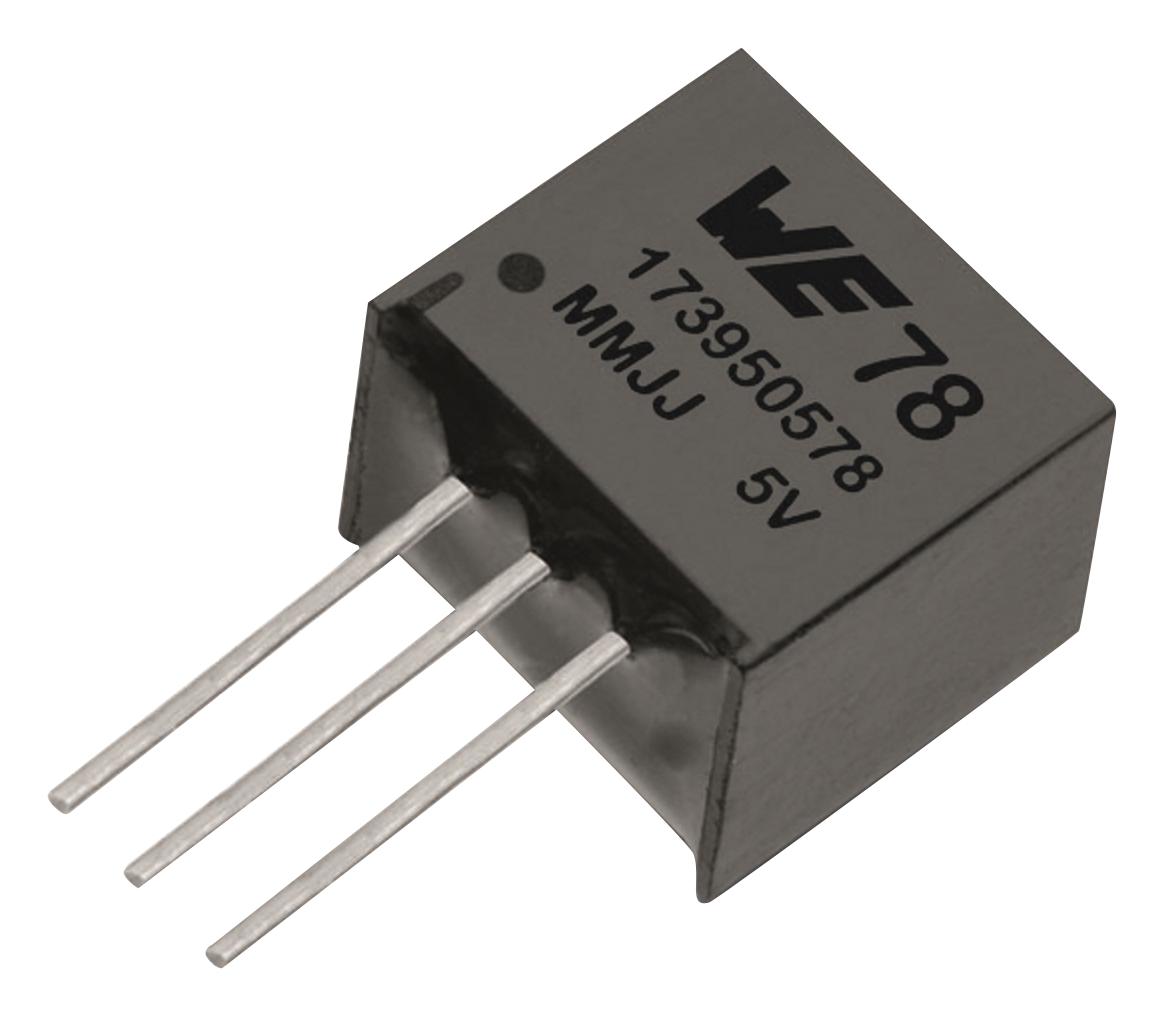

WURTH ELEKTRONIK 173950578 Power Module
The Wurth Elektronik Magl°C Power Module is a fixed step-down regulator providing 3.3V or 5V output at 0.5A, with high efficiency up to 95%. This fully integrated DC/DC converter features inbuilt inductor and capacitors, eliminating external components. It operates over a wide input voltage range of 6V to 28V, with excellent line and load regulation, low output ripple, and thermal shutdown protection. Suitable for point-of-load, microcontroller interfaces, and replacing linear regulators in compact applications, it ensures reliable power conversion with minimal design effort.
WURTH ELEKTRONIK 173950578 Power Module Specifications:
- Input Voltage Range: 6V to 28V
- Output Voltage: 3.3V or 5V (fixed)
- Output Current: 500mA
- Efficiency: Up to 95%
- Output Ripple: approx. 10mV
- Switching Frequency: 570 kHz
- Thermal Shutdown: Yes
- Short Circuit Protection: Yes
- Maximum Capacitive Load: 220 UF
- Operating Temperature Range: -40°C to 85°C
- Package Material: UL94V-0
- Dimensions: 11.60mm x 10.50mm x 2.54mm
- Recommended Drilled Hole Diameter: 0.9mm
Buy the Buy Wurth Elektronik Power Module Part Number 173950578 Online
Get your Wurth Elektronik Power Module 173950578 today from our online store. Designed for efficient power regulation, it features integrated inductor and capacitors, wide input voltage range, and high thermal and overvoltage protections. Perfect for replacing linear regulators and powering microcontrollers or industrial systems. Our online ordering process guarantees fast delivery, quality assurance, and complete support for your project needs. Invest in reliable power solutions with this high-performance, easy-to-install power module for critical applications.
Order your Wurth Elektronik Power Module 173950578 today and ensure reliable, high-efficiency power conversion for your electronics projects.
