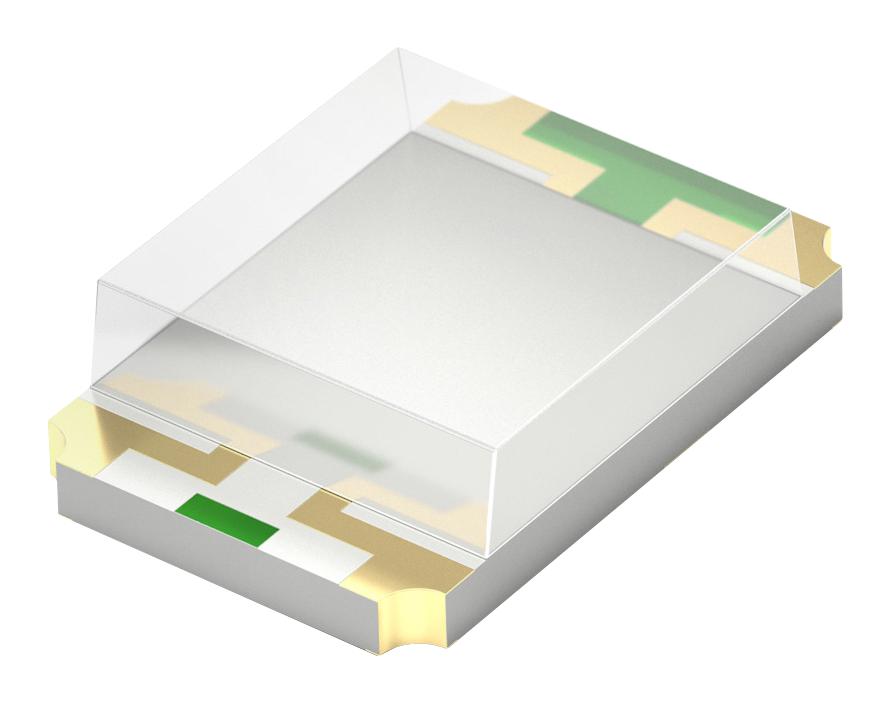

WURTH ELEKTRONIK 150080RV54050 Bi-color Chip LED
The Würth Elektronik 150080RV54050 is a surface-mount technology (SMT) bi-color chip LED designed for general electronic equipment. This LED offers both red and bright green emission with a diffused lens, providing a wide viewing angle and uniform light distribution. It's ideal for applications such as indicator lights, status displays, and backlighting in consumer electronics, industrial control panels, and automotive dashboards. The component operates within a temperature range of -40°C to +85°C and is RoHS compliant, ensuring environmental responsibility. Würth Elektronik emphasizes that this product is not intended for use in safety-critical applications without proper evaluation and agreement.
WURTH ELEKTRONIK 150080RV54050 Bi-color Chip LED Specifications:
- Dimensions: 1.0 ± 0.1 mm
- Recommended Land Pattern: 1.0 x 1.0 mm
- Power Dissipation (Red): 48 mW
- Power Dissipation (Bright Green): 48 mW
- Peak Forward Current: 40 mA
- Continuous Forward Current: 20 mA
- Reverse Voltage: 5 V
- Junction Temperature: 115 °C
- Chip Technology: AlInGaP
- Emitting Color: Red & Bright Green
- Lens Type: Diffused
- Operating Temperature: -40 up to +85 °C
- Storage Conditions (in original packaging): < 40 °C ; < 90 % RH
- Storage Conditions (for single parts): -40 up to +100 °C
- Moisture Sensitivity Level (MSL): 3
- Peak Wavelength (Red): 632 nm
- Peak Wavelength (Bright Green): 575 nm
- Dominant Wavelength (Red): 624 nm
- Dominant Wavelength (Bright Green): 573 nm
- Luminous Intensity (Red): 45 - 100 mcd
- Luminous Intensity (Bright Green): 25 - 60 mcd
- Forward Voltage (Red): 2 - 2.4 V
- Forward Voltage (Bright Green): 2 - 2.4 V
- Spectral Bandwidth (Red): 20 nm
- Spectral Bandwidth (Bright Green): 15 nm
- Reverse Current: 10 µA
- Viewing Angle Phi 0°: 130°
- RoHS Approval: Compliant [ 2011/65/EU&2015/863 ]
- REACh Approval: Conform or declared [ (EC)1907/2006 ]
- Halogen Free: Conform [ JEDEC JS709B ]
