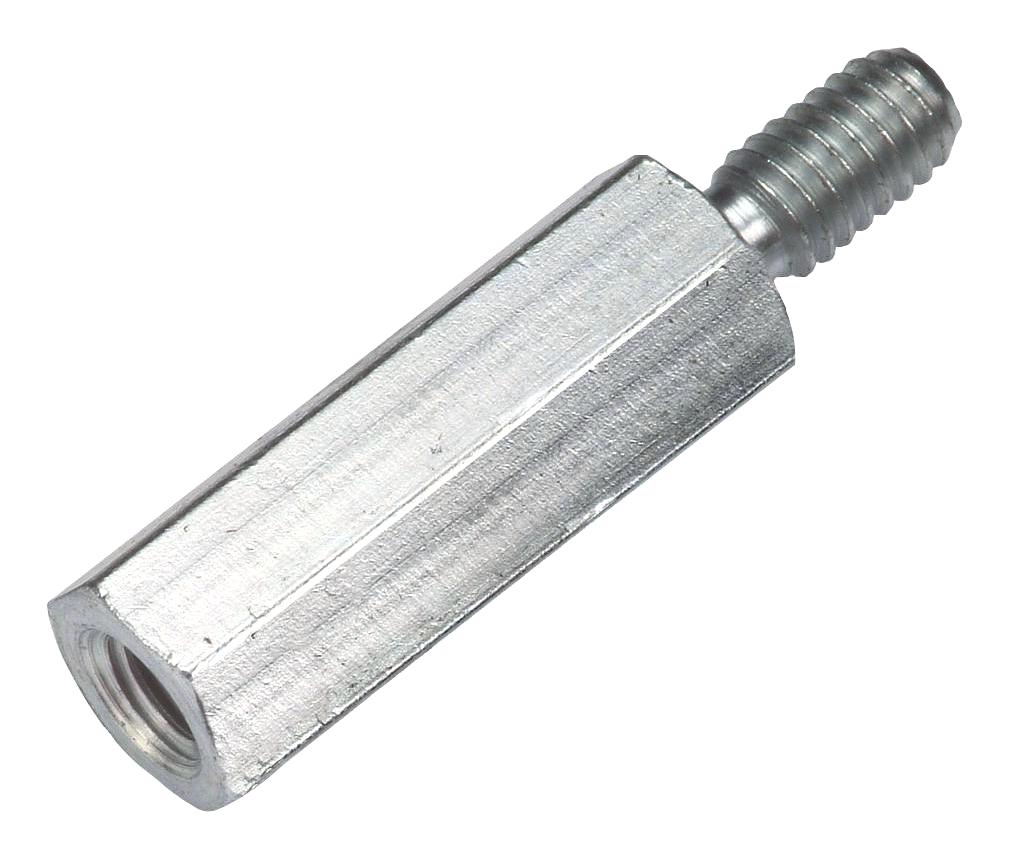

WURTH ELEKTRONIK 971070151 Steel Spacer Stud
The Würth Elektronik WA-SSTIE series steel spacer stud, part number 971070151, is a precision-engineered fastener designed for use in general electronic equipment. Constructed from steel with a gloss zinc surface finish, it provides robust and reliable fastening capabilities. The stud features M2.5 internal and external threads, facilitating secure attachment to PCBs and other components. It is RoHS compliant and suitable for a wide range of applications where a short, strong spacer is required. Proper storage and handling are essential to maintain product integrity, and customers should consult the datasheet for detailed specifications and cautions regarding usage in safety-critical applications.
WURTH ELEKTRONIK 971070151 Steel Spacer Stud Specifications:
- Dimensions: A: Not specified
- Material: Steel
- Surface: Gloss zinc
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- Halogen Free: Conform [IEC 61249-2-21] and [JEDEC JS709B]
- Operating Temperature: -55 up to +150 °C
- Storage Conditions: < 40 °C ; < 75 % RH
- Moisture Sensitivity Level (MSL): 1
- Length: 7 mm
- Inner Thread: M2.5
- Outer Thread: M2.5
- Inner Thread Length: 4.5 mm
- Outer Thread Length: 6 mm
- Wrench: 5 mm
- Thread Type: Metric
- General Tolerance: DIN ISO 2768-1m
