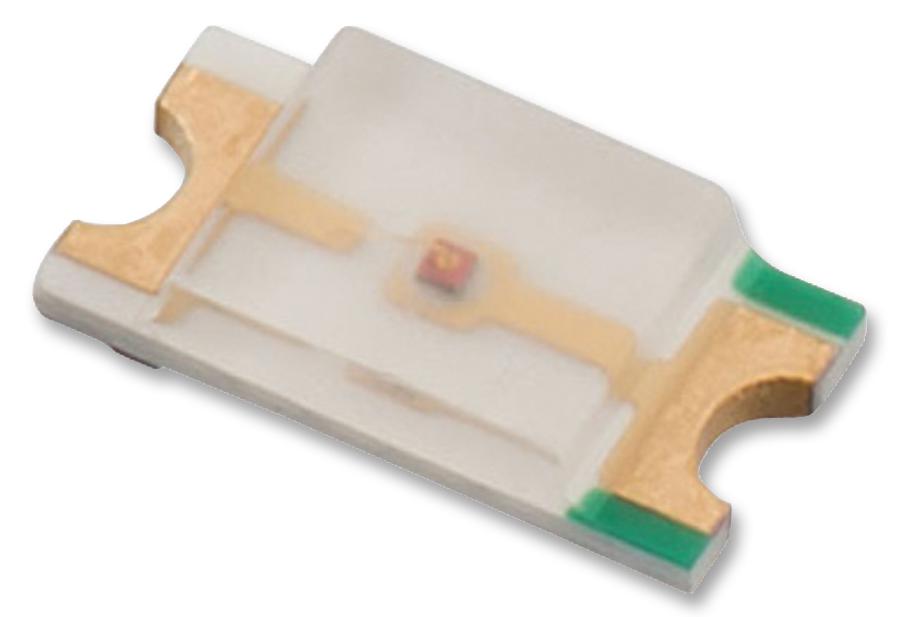

WURTH ELEKTRONIK 150120GS75000 Green SMD Chip LED
The WURTH ELEKTRONIK 150120GS75000 is a compact, surface-mount LED designed for a wide range of applications. It utilizes InGaN chip technology to produce a vibrant green light with a dominant wavelength of 520nm. The waterclear lens maximizes light transmission. This LED is intended for general electronic equipment and is not suitable for applications requiring high safety or reliability standards without proper evaluation. Refer to the datasheet for detailed electrical and optical characteristics.
WURTH ELEKTRONIK 150120GS75000 Green SMD Chip LED Specifications:
- Chip Technology: InGaN
- Emitting Color: Green
- Lens Type: Chip LED
- Power Dissipation: 105 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold HBM: 1000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level (MSL): 3
- Peak Wavelength: 515 nm
- Dominant Wavelength: 520 nm
- Luminous Intensity: 220-450 mcd
- Forward Voltage: 3.2-3.5 V
- Spectral Bandwidth: 35 nm
- Reverse Current: 10 μA
- Viewing Angle: 140°
Buy the 150120GS75000 WURTH ELEKTRONIK Green SMD Chip LED | myMectronic
Purchase the WURTH ELEKTRONIK 150120GS75000 securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 150120GS75000?
You can click on the BUY or RFQ button to purchase 150120GS75000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 150120GS75000?
You can download the 150120GS75000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 150120GS75000?
WURTH ELEKTRONIK
