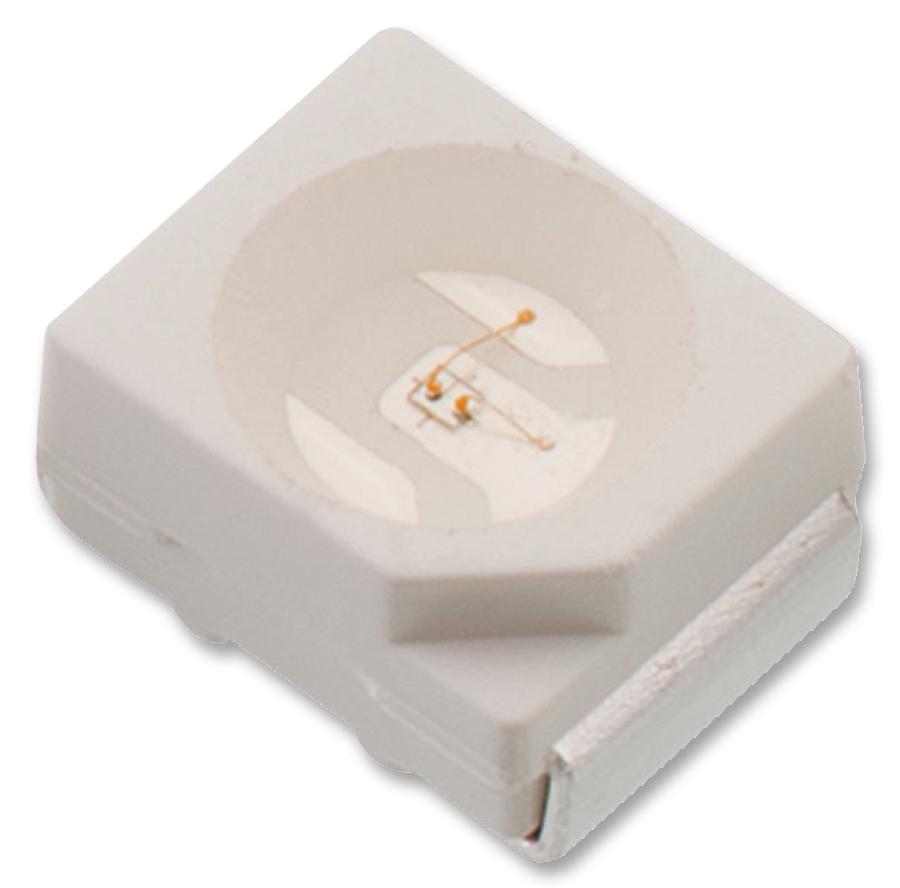

WURTH ELEKTRONIK 150141RS73100 SMT Mono-color Top LED
The Würth Elektronik 150141RS73100 is a surface-mount technology (SMT) LED designed for integration into a wide range of electronic devices. This compact LED offers a red emitting color and is suitable for applications requiring a small footprint and efficient light output. It is designed for general electronic equipment and is not intended for use in safety-critical applications without proper evaluation. The LED operates within a temperature range of -40°C to +85°C and is RoHS compliant, ensuring environmental responsibility. It is ideal for indicator lights, backlighting, and general illumination purposes.
WURTH ELEKTRONIK 150141RS73100 SMT Mono-color Top LED Specifications:
- Recommended Land Pattern: 1, 1.25, 4.45 mm
- Power Dissipation: 72 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body: 2000 V
- Emitting Color: Red
- Lens Type: Top LED
- Operating Temperature: -40 up to +85 °C
- Storage Conditions in Original Packaging: < 40 °C ; < 90 % RH
- Storage Conditions for Single Parts: -40 up to +85 °C
- Moisture Sensitivity Level (MSL): 3
- Peak Wavelength: 630 nm
- Dominant Wavelength: 625 nm
- Luminous Intensity: 200-300 mcd
- Forward Voltage: 2-2.4 V
- Spectral Bandwidth: 15 nm
- Reverse Current: 10 µA
- Viewing Angle Phi 0°: 120°
