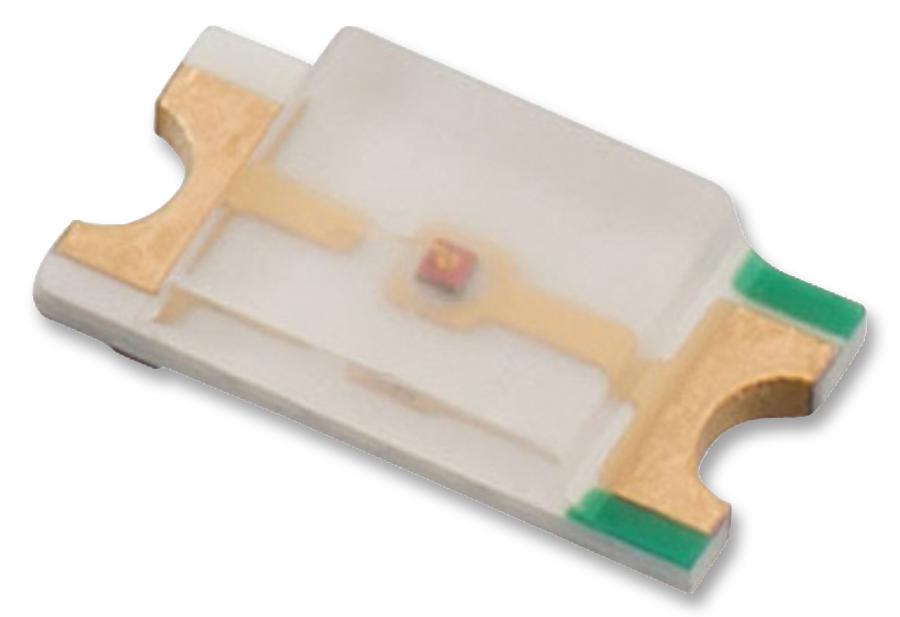

WURTH ELEKTRONIK 150120YS75000 Yellow SMD Chip LED
The WURTH ELEKTRONIK 150120YS75000 is a surface-mount device (SMD) LED emitting yellow light. This component is designed for general electronic equipment and is not intended for use in safety-critical applications. It offers a peak wavelength of 595nm, a dominant wavelength of 590nm, and a luminous intensity ranging from 90 to 120 mcd. The LED's compact size and efficient light output make it suitable for applications such as indicator lights, backlighting, and general illumination in consumer electronics and industrial equipment. Always consult the datasheet for detailed specifications and safety guidelines before use.
WURTH ELEKTRONIK 150120YS75000 Yellow SMD Chip LED Specifications:
- Chip Technology: AlInGaP
- Emitting Color: Yellow
- Lens Type: Chip LED
- Power Dissipation: 72 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body Modell: 2000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level (MSL): 3
- Peak Wavelength: 595 nm
- Dominant Wavelength: 590 nm
- Luminous Intensity: 90-120 mcd
- Forward Voltage: 2.0-2.4 V
- Spectral Bandwidth: 15 nm
- Reverse Current: ≤10 μA
- Viewing Angle: 140°
Buy the 150120YS75000 WURTH ELEKTRONIK Yellow SMD Chip LED | myMectronic
Purchase the WURTH ELEKTRONIK 150120YS75000 securely and reliably through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 150120YS75000?
You can click on the BUY or RFQ button to purchase 150120YS75000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 150120YS75000?
You can download the 150120YS75000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 150120YS75000?
WURTH ELEKTRONIK
