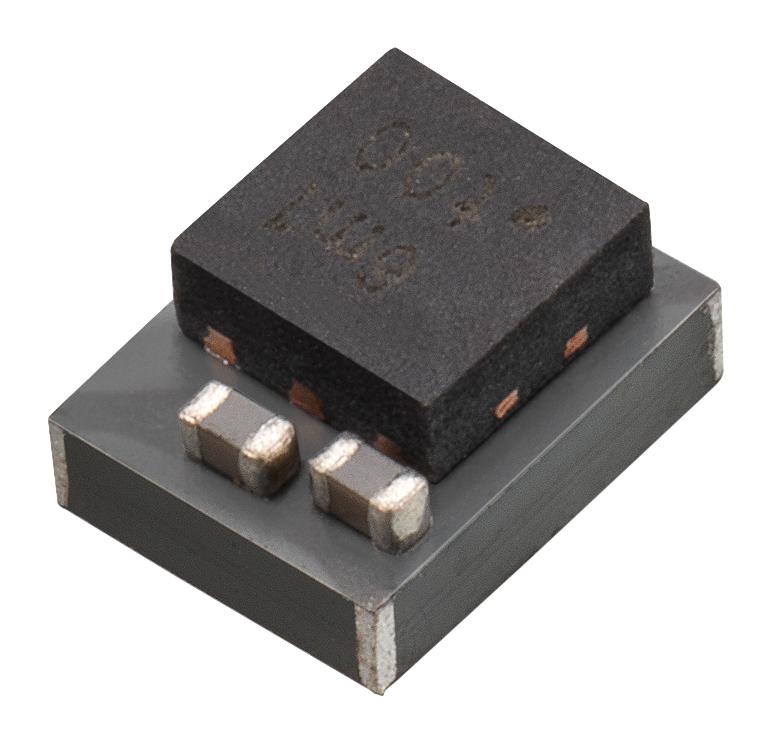

WURTH ELEKTRONIK 171960501 Variable Step Down MicroModule
The WURTH ELEKTRONIK VDMM 171960501 MagI[3] C MicroModule is a compact DC-DC power supply solution integrating a switching regulator, MOSFETs, compensation, and a shielded inductor. Designed for small solution sizes, it provides high efficiency and delivers up to 0.6A of output current. It features selectable forced PWM or PFM/PWM mode for optimized efficiency and ripple performance. This module includes integrated protection circuitry against thermal overstress, overcurrent, short-circuit, and undervoltage, making it suitable for various applications including general point-of-load power supplies, DSP and FPGA power supply auxiliary voltages, portable instruments, and battery-powered equipment.
WURTH ELEKTRONIK 171960501 Variable Step Down MicroModule Specifications:
- Input Voltage Range: 2.7V to 5.5V
- Output Voltage Range: 0.6V to 5.5V
- Output Current: Up to 0.6A
- Peak Efficiency: Up to 96%
- Quiescent Current: 30 µA typical
- Switching Frequency: 2.25 MHz
- Operating Temperature: -40°C to 85°C
- Junction Temperature: -40°C to 125°C
- Package: LGA-6EP
- Compliance: RoHS and REACh compliant
- Protection: Thermal shutdown, Short-circuit protection, Undervoltage lockout (UVLO)
- Mode Selection: Selectable forced PWM or PFM/PWM
Buy the 171960501 WURTH ELEKTRONIK Variable Step Down MicroModule | myMectronic
Purchase the WURTH ELEKTRONIK 171960501 Variable Step Down MicroModule securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 171960501?
You can click on the BUY or RFQ button to purchase 171960501 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 171960501?
You can download the 171960501 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 171960501?
WURTH ELEKTRONIK
