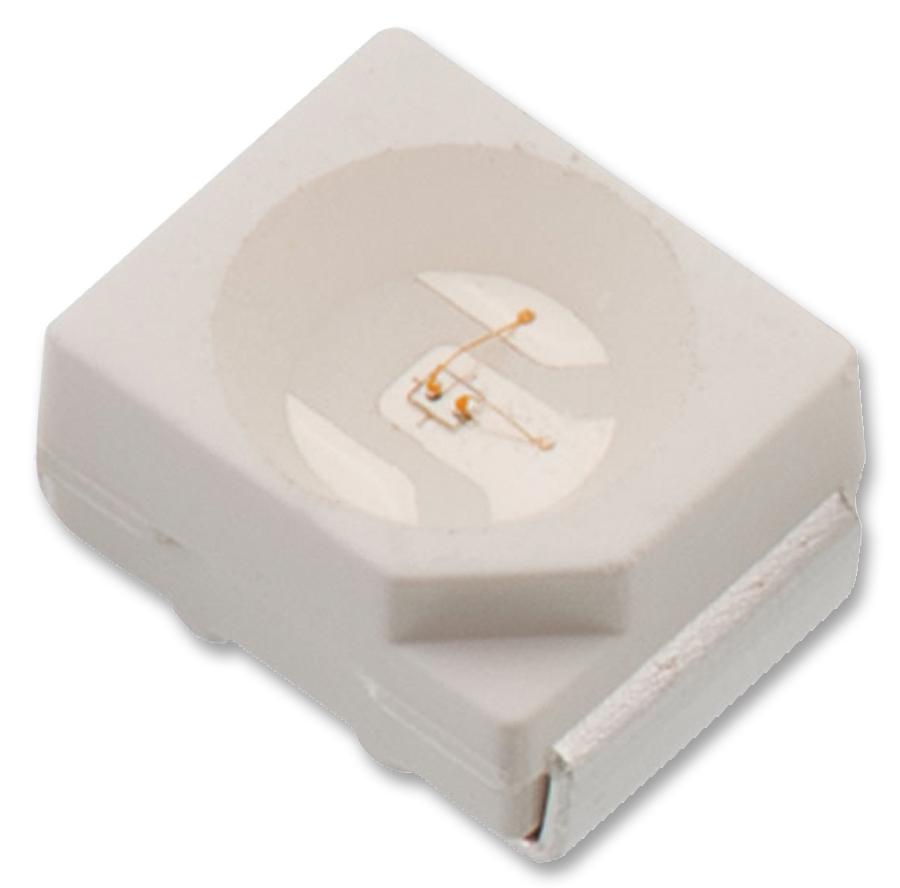

WURTH ELEKTRONIK 150141BS73100 SMD Top LED Mono-color
The WURTH ELEKTRONIK 150141BS73100 is a compact, surface-mountable LED designed for a wide range of electronic applications. This blue LED features a 3528 package and delivers a luminous intensity ranging from 200 to 270 mcd. With a forward voltage between 3.2 and 3.5V, it's easily integrated into various circuits. It is designed for general electronic equipment and not intended for high-reliability applications like aerospace or medical devices. Always consult Würth Elektronik for specific use cases requiring enhanced safety and reliability.
WURTH ELEKTRONIK 150141BS73100 SMD Top LED Mono-color Specifications:
- emitting_color: Blue
- lens_type: Top LED
- power_dissipation: 105 mW
- peak_forward_current: 100 mA
- continuous_forward_current: 30 mA
- reverse_voltage: 5 V
- esd_threshold_human_body_modell: 1000 V
- operating_temperature: -40 to +85 °C
- storage_temperature: -40 to +85 °C
- moisture_sensitivity_level: 3
- peak_wavelength: 465 nm
- dominant_wavelength: 470 nm
- luminous_intensity: 200-270 mcd
- forward_voltage: 3.2-3.5 V
- spectral_bandwidth: 25 nm
- reverse_current: 10 μA
- viewing_angle: 120 °
