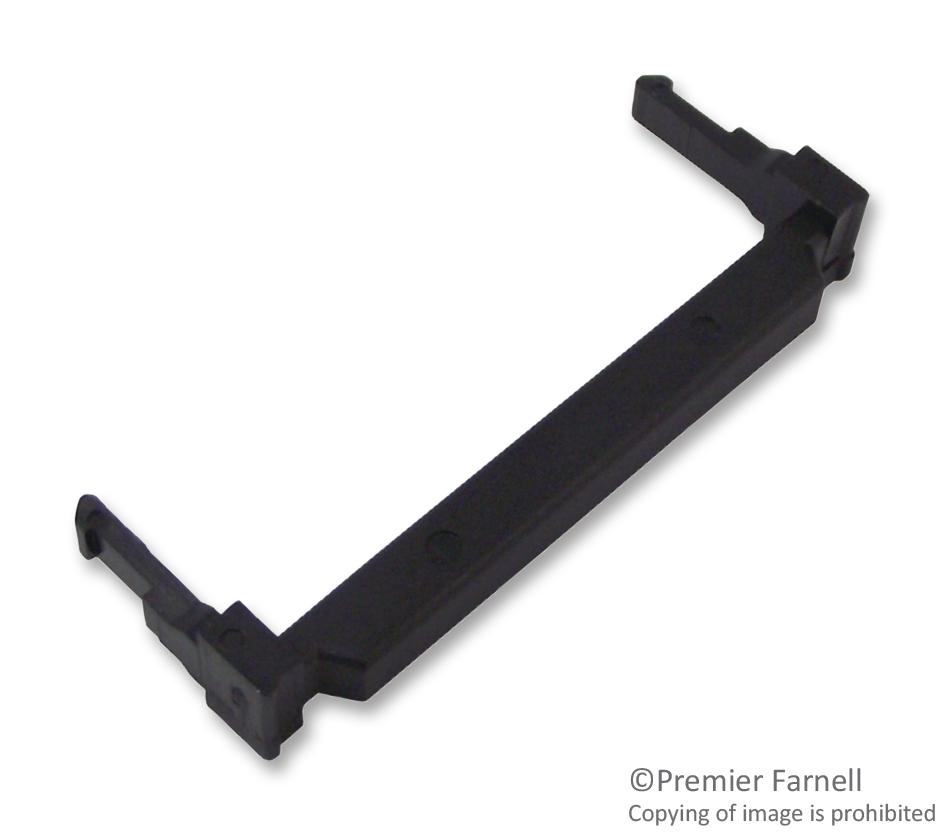

WURTH ELEKTRONIK 61202423021 IDC Connector
The WR-BHD Female IDC Connector with strain relief is a 2.54 mm pitch, copper alloy contact component designed for reliable electronic connections. It features gold-plated stamped contacts, a maximum durability of 500 mating cycles, and an operating temperature range from -40°C to +105°C. Made from black PBT insulator material with UL94 V-0 flammability rating, it complies with RoHS, REACH, and halogen-free standards. The connector is suitable for industrial electronic assemblies requiring durable, high-quality connections with strain relief and precise pin-to-pin spacing.
WURTH ELEKTRONIK 61202423021 IDC Connector Specifications:
- Pitch: 2.54 mm
- Pins: 24
- Pin to Pin (Middle): 27.94 mm
- Length L: 35.16 mm
- Durability: 500 Mating cycles
- Insulator Material: PBT
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Black
- Contact Material: Copper Alloy
- Contact Plating: Selective Gold
- Contact Type: Stamped
- Operating Temperature: -40°C to +105°C
- Rated Current: 1 A max
- Working Voltage: 250 V AC
- Withstanding Voltage: 500 V, 1 min
- Contact Resistance: 20 mΩ max
- Insulation Resistance: ≥ 1000 MΩ
- Compliance: RoHS, REACH, Halogen Free, UL approved
Buy the WURTH ELEKTRONIK 61202423021 – Reliable IDC Connectors for Industrial Applications
Experience high-quality power and data connections with our IDC Connector featuring strain relief, gold-plated contacts, and a durable design. Perfect for industrial electronics, it offers excellent performance with a maximum of 500 mating cycles. Operating over a temperature range from -40°C to +105°C, this connector is UL 94 V-0 rated and compliant with RoHS, REACH, and halogen regulations. Easy to install, reliable, and designed for long-lasting use in demanding electronic assemblies, order now for seamless connectivity.
Get WURTH ELEKTRONIK 61202423021 today—built for precision, high durability, and reliable electronic connections in industrial environments.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61202423021?
You can click on the BUY or RFQ button to purchase 61202423021 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61202423021?
You can download the 61202423021 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61202423021?
WURTH ELEKTRONIK
