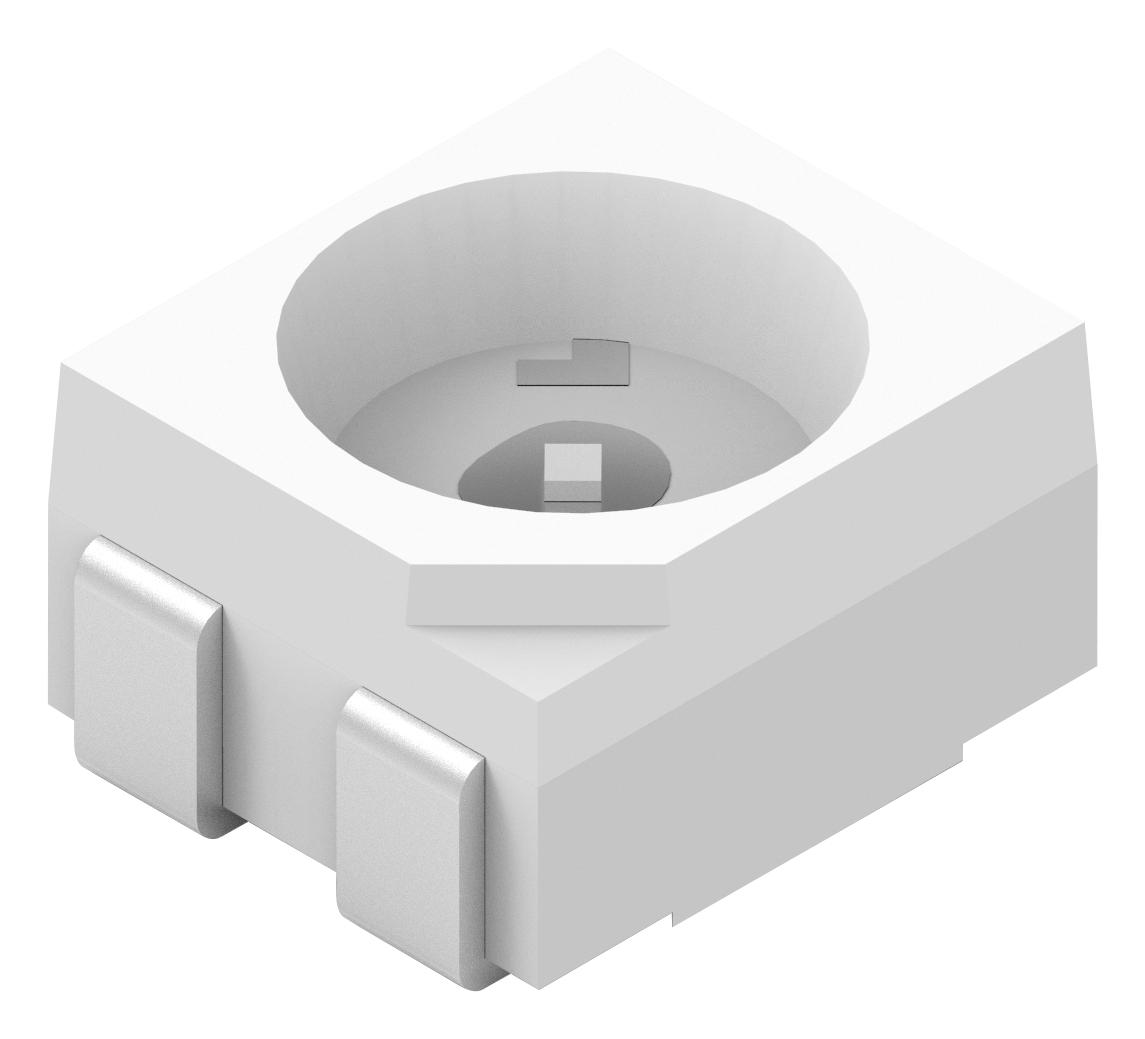

WURTH ELEKTRONIK 150141YS73140 LED Module
The LED module with a PLCC4 common cathode configuration offers yellow light emission with a wavelength of approximately 590 nm, a luminous intensity of up to 2000 mCd at 50mA, and a forward voltage range of 24-28V. Designed for industry-grade applications, it features a waterclear lens, robust white plastic housing, and complies with RoHS, REACH, and halogen-free standards. Suitable for electronic equipment requiring high reliability, the device can operate within -40°C to +85°C and withstand peak forward currents up to 100mA, making it ideal for various signaling and illumination tasks.
WURTH ELEKTRONIK 150141YS73140 LED Module Specifications:
- Wavelength: 590 nm
- Peak Wavelength: 592 nm at 50 mA
- Luminous Intensity: 1500–2000 med at 50 mA
- Forward Voltage: 24–28 V at 50 mA
- Spectral Bandwidth: 20 nm
- Reverse Current: 10 μA at 5 V
- Viewing Angle: 120° typical
- Operating Temperature: -40°C to +85°C
- Peak Forward Current: 100 mA
- Continuous Forward Current: 50 mA
- Power Dissipation: 240 mW
- Junction Temperature: 115°C
- Storage Conditions: -40°C to +100°C, 75% RH maximum
- Compliance: RoHS, REACH, Halogen-Free (JEDEC JS709B, IEC 61249-2-21)
- Dimensions: Typical size suitable for PLCC4 packages, precise dimensions from datasheet
- Soldering Profile: Preheat 150-200°C, max peak temperature 260°C, controlled ramp rates
Buy the Wurth Electronics 150141YS73140 – Reliable LED for Industrial Applications
Order the Wurth Electronics 150141YS73140 LED module online today to enhance your electronic projects with a high-quality, reliable yellow LED. Ideal for signaling, illumination, and industrial applications, this LED features a sun-optimized design with excellent optical performance, long-term stability, and compliance with latest environmental standards such as RoHS and REACH. Its robust construction ensures dependable operation across a wide temperature range (-40°C to +85°C). Experience fast delivery, competitive pricing, and technical support by purchasing online today to elevate your electronic solutions.
Buy Wurth Electronics 150141YS73140 LED module now and enjoy high brightness, excellent durability, and compliance with global safety standards suitable for industrial equipment.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 150141YS73140?
You can click on the BUY or RFQ button to purchase 150141YS73140 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 150141YS73140?
You can download the 150141YS73140 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 150141YS73140?
WURTH ELEKTRONIK
