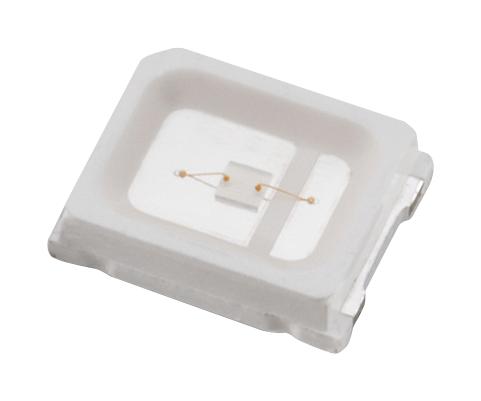

WURTH ELEKTRONIK 150283HS73103 SMT Mono-color Top LED
The Würth Elektronik 150283HS73103 is a surface-mount technology (SMT) LED designed specifically for horticulture and general electronic equipment. This compact LED features a waterclear lens to maximize light transmission and a white plastic housing. It operates with a continuous forward current of 150mA and a peak forward current of 300mA, delivering a radiant flux of 120mW. The LED is suitable for a wide range of applications requiring efficient and reliable red light emission, such as grow lights, indicator lights, and backlighting. It is RoHS compliant and designed for use in general electronic equipment, not critical safety applications.
WURTH ELEKTRONIK 150283HS73103 SMT Mono-color Top LED Specifications:
- Power Dissipation: 390 mW
- Peak Forward Current: 300 mA @ 1 kHz
- Continuous Forward Current: 150 mA
- Reverse Voltage: 5 V
- ESD Threshold (HBM): 2000 V
- Junction to Solder Point Thermal Resistance: 15 °C
- Junction Temperature: 115 °C
- Emitting Color: Hyper Red
- Lens Type: Waterclear
- Plastic Housing Color: White
- Operating Temperature: 40°C to +85°C
- Storage Temperature (original packaging): 40°C to +85°C
- Storage Temperature (single parts): 40°C to +100°C
- Moisture Sensitivity Level (MSL): 3
- Peak Wavelength: 660 nm
- Radiant Flux: 120 mW
- Forward Voltage: 2.2 - 2.6 V
- Spectral Bandwidth: 20 nm
- Reverse Current: 10 µA
- Viewing Angle: 120°
Buy the 150283HS73103 WURTH ELEKTRONIK SMT Mono-color Top LED | myMectronic
Securely purchase the Würth Elektronik 150283HS73103 SMT LED online for your electronic projects.
Buy Now
