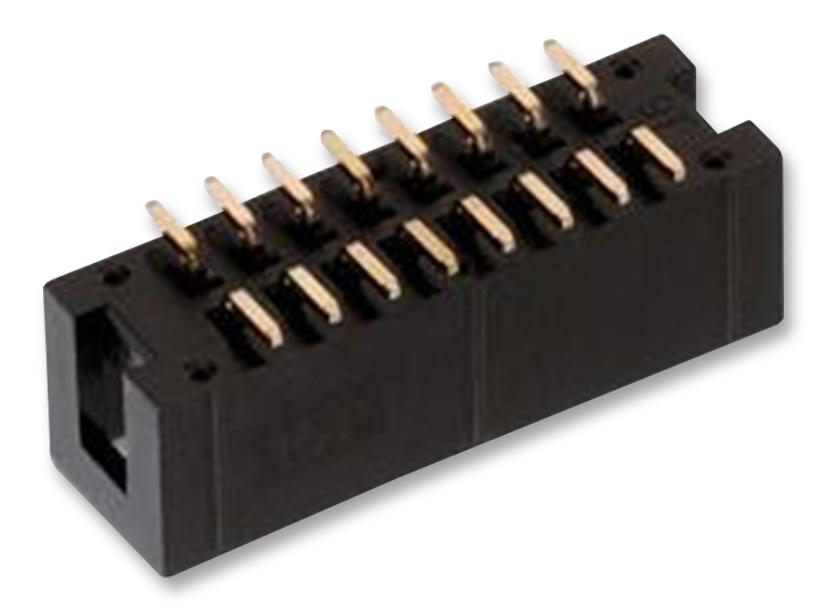

WURTH ELEKTRONIK 61232020621 Male SMT Box Header
This is a 2.54mm pitch male SMT box header connector suitable for various electronic applications including PCB interconnections and industrial equipment. Featuring gold-plated contacts, UL94-VO flammability rating, RoHS compliance, and a current capacity of 3A at 250 VAC. Designed for reliable connections with a contact resistance of 20 mΩ max and dielectric withstand voltage of 1000 VAC. It supports lead-free, reflow soldering, and offers dimensions optimized for easy mounting in tight spaces. Suitable for general electronic device assembly requiring robust and durable pin headers.
WURTH ELEKTRONIK 61232020621 Male SMT Box Header Specifications:
- Pitch: 2.54mm
- Contact Plating: Gold
- Flammability Rating: UL94-VO
- Operating Temperature: -40°C to 105°C
- Current Rating: 3A max
- Working Voltage: 250 VAC
- Insulator Resistance: >5000 MΩ
- Dielectric Withstanding Voltage: 1000 VAC/min
- Contact Resistance: 20 mΩ max
- Soldering: Reflow, Lead-free, JEDEC compatible
- Dimensions: Compatible with standard PCB layouts for 2.54mm pitch, 40 pins
- Packaging: Tape and reel, 250 pieces per reel
- Certifications: RoHS compliant, UL94-V0 flame rating
Buy the Buy Würth Elektronik 2.54mm Male SMT Box Header Part Number 61232020621 Online
Order the Würth Elektronik male SMT box header with 2.54mm pitch today for secure and reliable PCB connections. Featuring gold-plated contacts, UL94-VO flammability rating, RoHS compliance, and a robust 3A current capacity, this connector ensures optimal performance across electronics manufacturing. Designed for lead-free reflow soldering, it offers easy mounting and compatibility with standard PCB layouts. Elevate your assembly process with this durable and high-quality pin header, available now for quick online purchase directly supporting your electronic project needs.
Buy Würth Elektronik 61232020621 now and experience unmatched reliability and performance in your PCB assembly with high-quality gold contact connectors.
