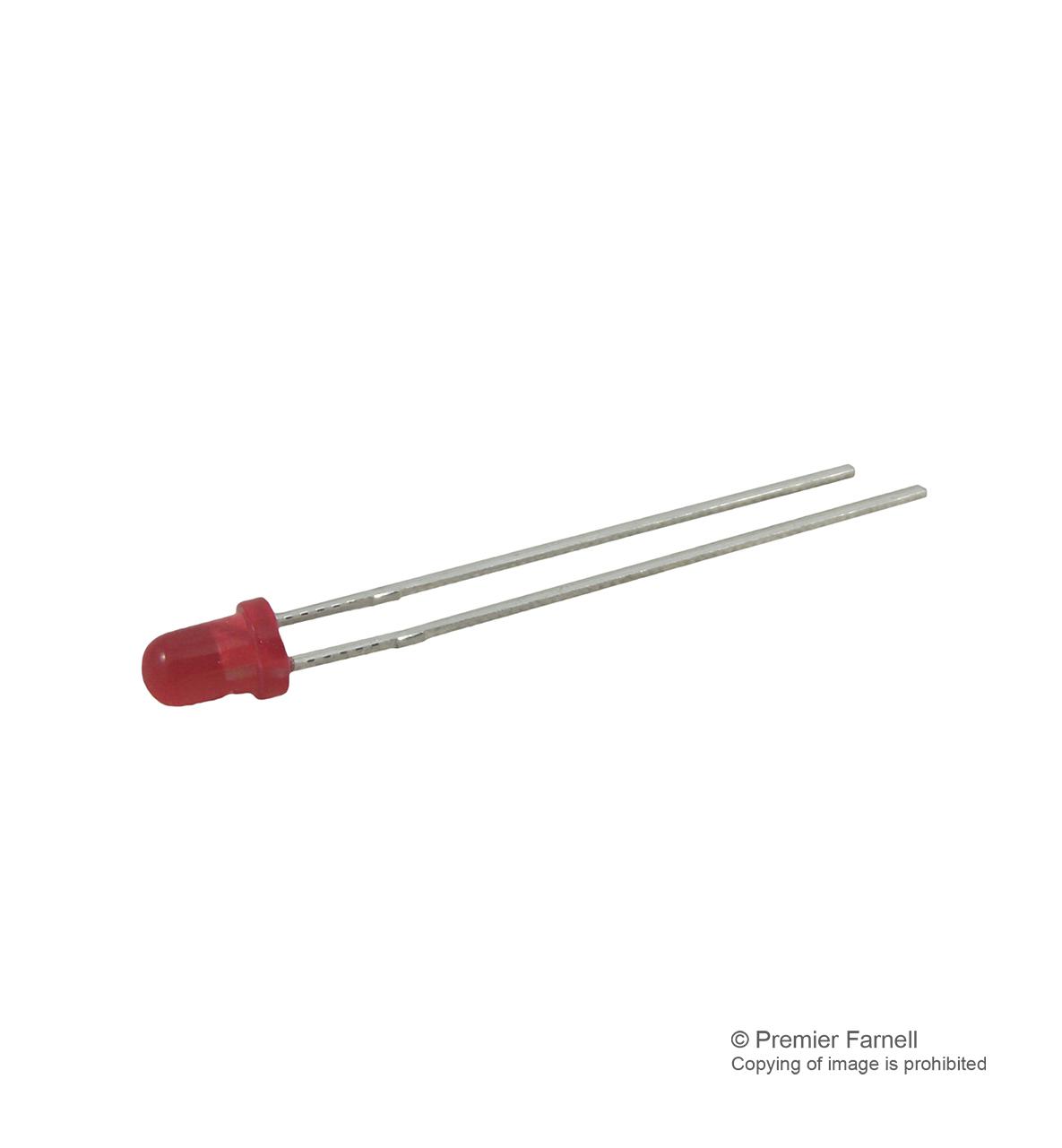

WURTH ELEKTRONIK 151031SS06000 Mono-color Round LED
The WURTH ELEKTRONIK 151031SS06000 is a THT mono-color round LED designed for general electronic equipment. It features a compact size and is suitable for a wide range of applications including indicator lights, displays, and backlighting. The LED is RoHS compliant, ensuring environmental responsibility. Würth Elektronik eiSos GmbH & Co. KG emphasizes that this product is not intended for use in safety-critical applications without proper evaluation and agreement. It's ideal for designers seeking a reliable and compact LED solution for diverse electronic projects.
WURTH ELEKTRONIK 151031SS06000 Mono-color Round LED Specifications:
- Dimensions_mm: 2.54 typ., 3.0 ±0.25, 3.95 ±0.25, 25.4 ±0.25, 1.0 min.
- Recommended_Hole_Pattern_mm: 2.54, O 1.0
- Power_Dissipation_mW: 78
- Peak_Forward_Current_mA: 100
- Continuous_Forward_Current_mA: 30
- Reverse_Voltage_V: 5
- ESD_Threshold_Human_Body_V: 2000
- Optical_Properties_Chip_Technology: AlGaAs
- Optical_Properties_Emitting_Color: Super Red
- Optical_Properties_Lens_Type: Color diffused
- Operating_Temperature_C: -40 up to +85
- Storage_Conditions_Packaging_C: < 40 °C
- Storage_Conditions_Packaging_RH: < 75 %
- Moisture_Sensitivity_Level_MSL: 1
- Peak_Wavelength_nm: 650
- Dominant_Wavelength_nm: 640
- Luminous_Intensity_mcd: 9-35
- Forward_Voltage_V: 2.2-2.6
- Spectral_Bandwidth_nm: 40
- Reverse_Current_uA: 10
- Viewing_Angle_degrees: 60
