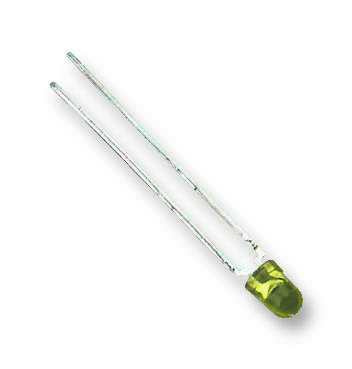

WURTH ELEKTRONIK 151051YS04000 Mono-color Round LED
The Würth Elektronik 151051YS04000 is a through-hole (THT) mono-color round LED designed for integration into general electronic equipment. This LED offers a compact form factor and a yellow emitting color, making it suitable for indicator lights, displays, and other applications where a small, visible light source is needed. It is RoHS compliant, demonstrating a commitment to environmental responsibility. The component is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik. Refer to the datasheet for detailed electrical and optical characteristics and operating conditions.
WURTH ELEKTRONIK 151051YS04000 Mono-color Round LED Specifications:
- Dimensions: 2.54 typ, 4.9 ±0.25, 1.0 typ, 5.9 ±0.25, 25.4 ±0.25, 0.5, 13.2 ±0.4, 0.75 typ, 1.0 min
- Recommended Hole Pattern: 2.54, O 1.0
- Power Dissipation: 75 mW
- Peak Forward Current: 100 mA (duty/ 10 @ 1 kHz)
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body: 2000 V
- Chip Technology: AlInGaP
- Emitting Color: Yellow
- Lens Type: Color diffused
- Operating Temperature: -40 up to +85 °C
- Storage Conditions: < 40 °C ; < 75 % RH
- Moisture Sensitivity Level (MSL): 1
- Peak Wavelength: 592 nm
- Dominant Wavelength: 590 nm
- Luminous Intensity: 300-450 mcd
- Forward Voltage: 2-2.4 V
- Spectral Bandwidth: 17 nm
- Reverse Current: ≤10 μA
- Viewing Angle: 40°
