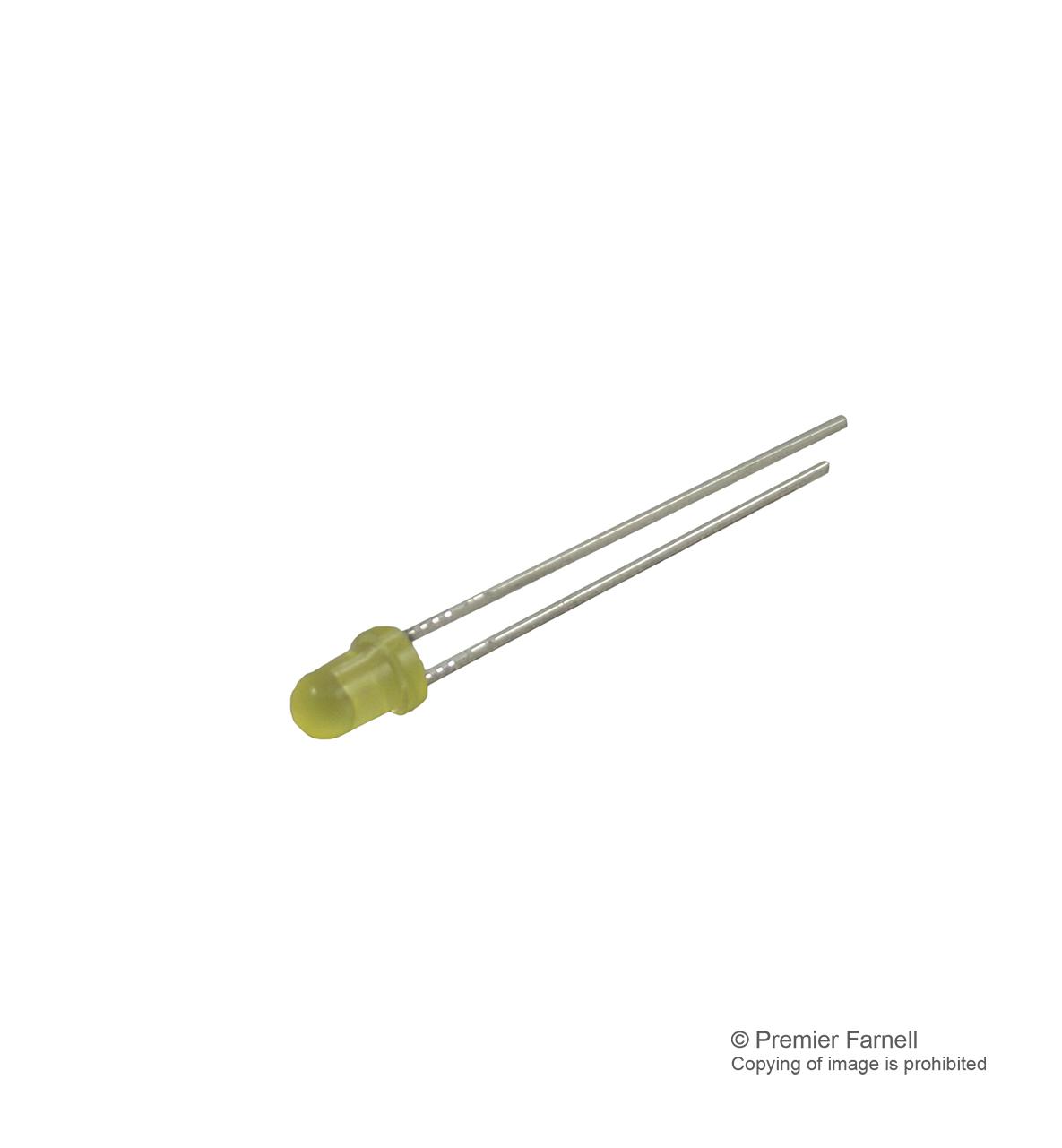

WURTH ELEKTRONIK 151031YS05900 Mono-color Round LED
The WURTH ELEKTRONIK 151031YS05900 is a THT mono-color round LED designed for general electronic equipment. It emits a yellow light with a peak wavelength of 585nm and a dominant wavelength of 590nm. This LED is suitable for indicator lights, displays, and other applications requiring a compact and reliable light source. It is RoHS compliant and operates within a temperature range of -40°C to +85°C. Würth Elektronik eiSos GmbH & Co. KG emphasizes that this product is not intended for use in safety-critical applications without proper evaluation and agreement.
WURTH ELEKTRONIK 151031YS05900 Mono-color Round LED Specifications:
- Dimensions_mm: 2.54 typ., 3.0 ±0.25, 3.95 ±0.25, 25.4 ±0.25, 1.0 min.
- Recommended Hole Pattern_mm: 2.54, O 1.0
- Power Dissipation_mW: 78
- Peak Forward Current_mA: 100
- Continuous Forward Current_mA: 30
- Reverse Voltage_V: 5
- ESD Threshold_Human Body_V: 2000
- Chip Technology: GaAsP/GaP
- Emitting Color: Yellow
- Lens Type: Color diffused
- Operating Temperature_C: -40 up to +85
- Storage Conditions_C_RH: < 40 °C ; < 75 % RH
- Moisture Sensitivity Level MSL: 1
- Peak Wavelength_nm: 585
- Dominant Wavelength_nm: 590
- Luminous Intensity_mcd: 9-30
- Forward Voltage_V: 2.1-2.6
- Spectral Bandwidth_nm: 35
- Reverse Current_uA: 10
- Viewing Angle_degrees: 60
