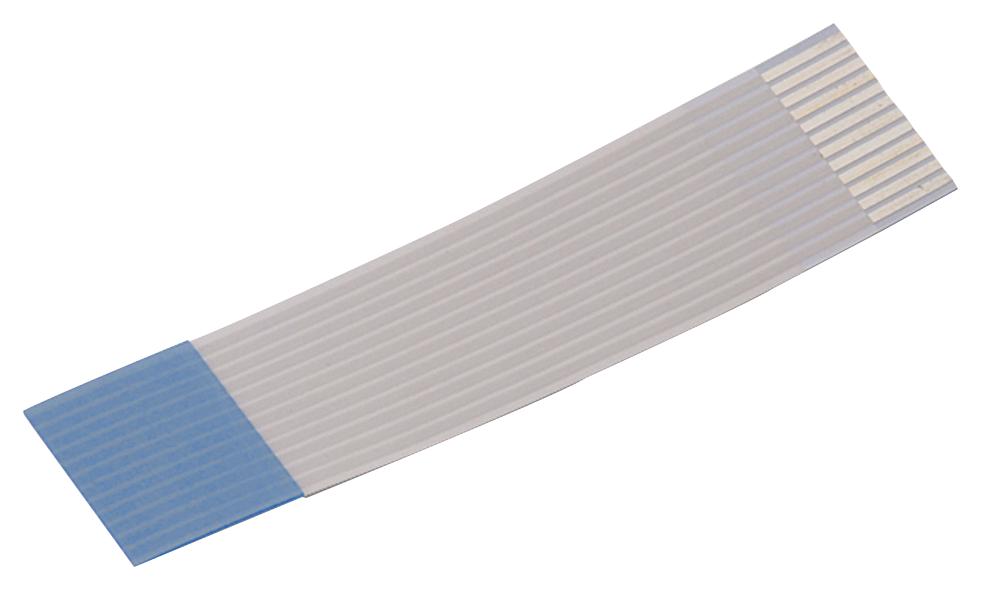

WURTH ELEKTRONIK 686705100001 Flexible Flat Cable
The WR-FFC Flat Flexible Cable is a Type 2, 1.00 mm pitch flexible connector designed for electronic applications requiring reliable and durable connections. Made with high-quality PET insulator and copper contact material with tin plating, it ensures excellent electrical performance and long-term stability. Suitable for a variety of electronic devices, it features a working voltage of 60V and withstands temperatures from -30°C to +105°C. Its compact size and flexible design make it ideal for space-constrained and dynamic environments, ensuring secure connectivity in advanced electronic systems.
WURTH ELEKTRONIK 686705100001 Flexible Flat Cable Specifications:
- Pitch: 1.00 mm
- Material: PET insulator, copper contacts with tin plating
- Rated Current: 1 A max
- Working Voltage: 60 V
- Operating Temperature: -30°C to +105°C
- Insulation Resistance: 1000 MΩ at 500 V
- Withstanding Voltage: 500 V AC for 1 min
- Contact Resistance: 20 mΩ max
- Conductor Resistance: 1.09 Ω max
- Durability: 20 mating cycles
- Flammability Rating: UL SUB.758
- Moisture Resistance: 96 hours at 40°C, 95% RH
- Heat Resistance: 110°C for 96 hours
- Tensile Strength: 35 N/mm²
- Elongation of Insulator: 60% minimum
- Flexing Test: 180° bend, 20 times
- Abrasion Resistance: 10,000 cycles
Buy the Wurth Elektronik Series Flat Flexible Cable: 686705100001
Secure your electronic connections with our high-quality flexible flat cable designed for durability and reliable performance. This 1.00 mm pitch cable features PET insulator and tin-plated copper contacts, supporting a maximum current of 1A and voltage of 60V. Its broad temperature range from -30°C to +105°C, combined with robustness against moisture, heat, and mechanical stress, makes it ideal for space-constrained devices. Easy to install and long-lasting, this flexible cable enhances the reliability and performance of your electronic systems. Purchase online today to ensure seamless connectivity in your applications.
Order your Wurth Elektronik Series Flat Flexible Cable today and experience reliable electrical connections in your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686705100001?
You can click on the BUY or RFQ button to purchase 686705100001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686705100001?
You can download the 686705100001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686705100001?
WURTH ELEKTRONIK
