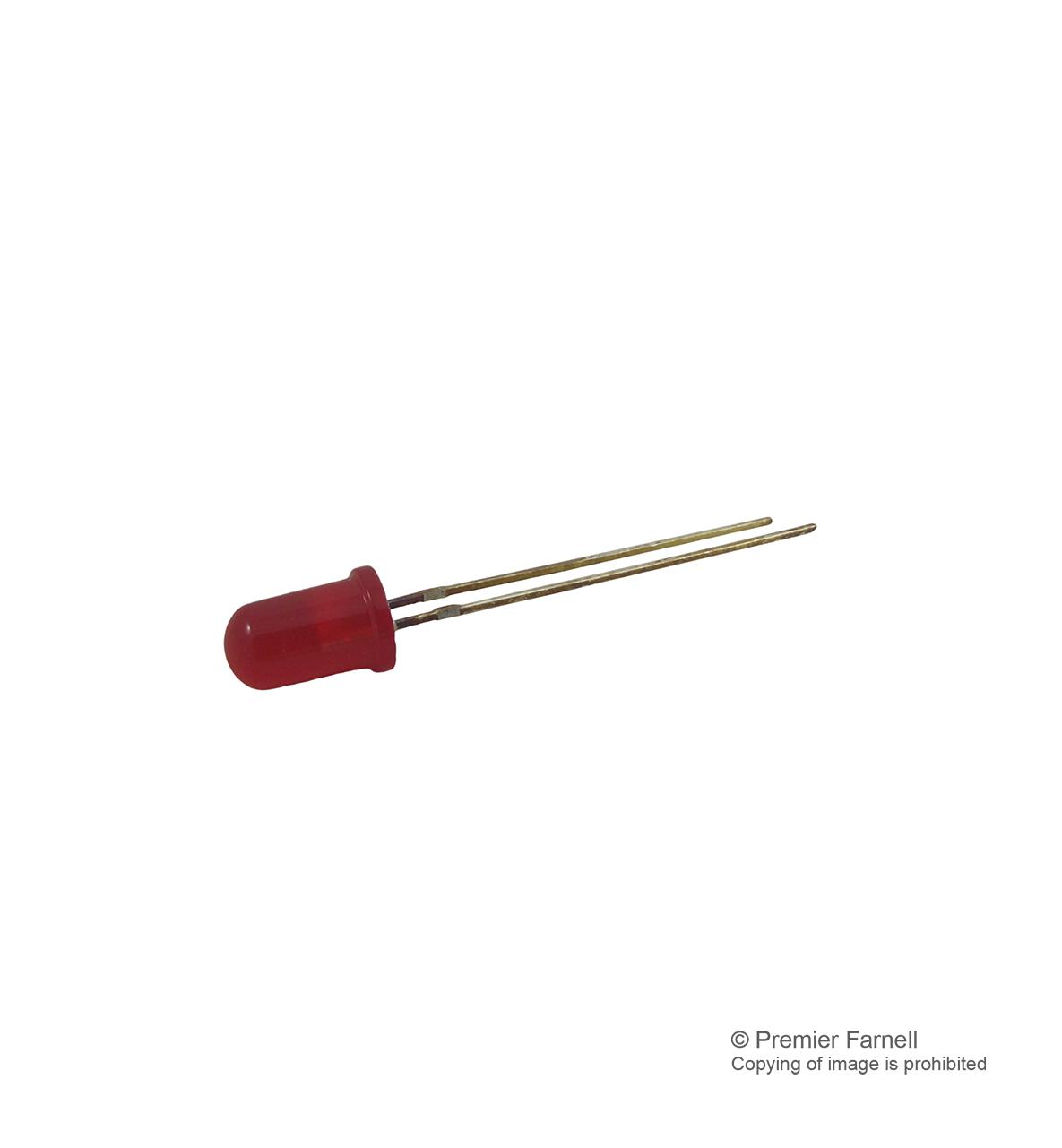

WURTH ELEKTRONIK 151051RS11000 Mono-color Round LED
The WURTH ELEKTRONIK 151051RS11000 is a THT mono-color round LED designed for general electronic equipment. This LED is characterized by its compact size and reliable performance, making it suitable for various applications. It is RoHS compliant and operates within a temperature range of -40°C to +85°C. The component is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 151051RS11000 Mono-color Round LED Specifications:
- Dimensions: 2.54 typ, 4.9 ±0.25, 1.0 typ, 5.9 ±0.25, 25.4 ±0.25, 0.5, 13.2 ±0.4, 0.75 typ, 1.0 min, 8.7 ±0.25
- Recommended Hole Pattern: 2.54, O 1.0
- Power Dissipation: 75 mW
- Peak Forward Current: 100 mA (duty/ 10 @ 1 kHz)
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body: 2000 V
- Chip Technology: AlGaInP
- Emitting Color: Red
- Lens Type: Color diffused
- Operating Temperature: -40 up to +85 °C
- Storage Conditions: < 40 °C ; < 75 % RH
- Moisture Sensitivity Level MSL: 1
- Peak Wavelength: 650 nm (20 mA)
- Dominant Wavelength: 645 nm (20 mA)
- Luminous Intensity: 30 mcd (20 mA)
- Forward Voltage: 2.1-2.5 V (20 mA)
- Spectral Bandwidth: 30 nm (20 mA)
- Reverse Current: 10 μA (5 V)
- Viewing Angle: 60° (2θ50%)
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- Halogen Free: Conform [IEC 61249-2-21] & [JEDEC JS709B]
