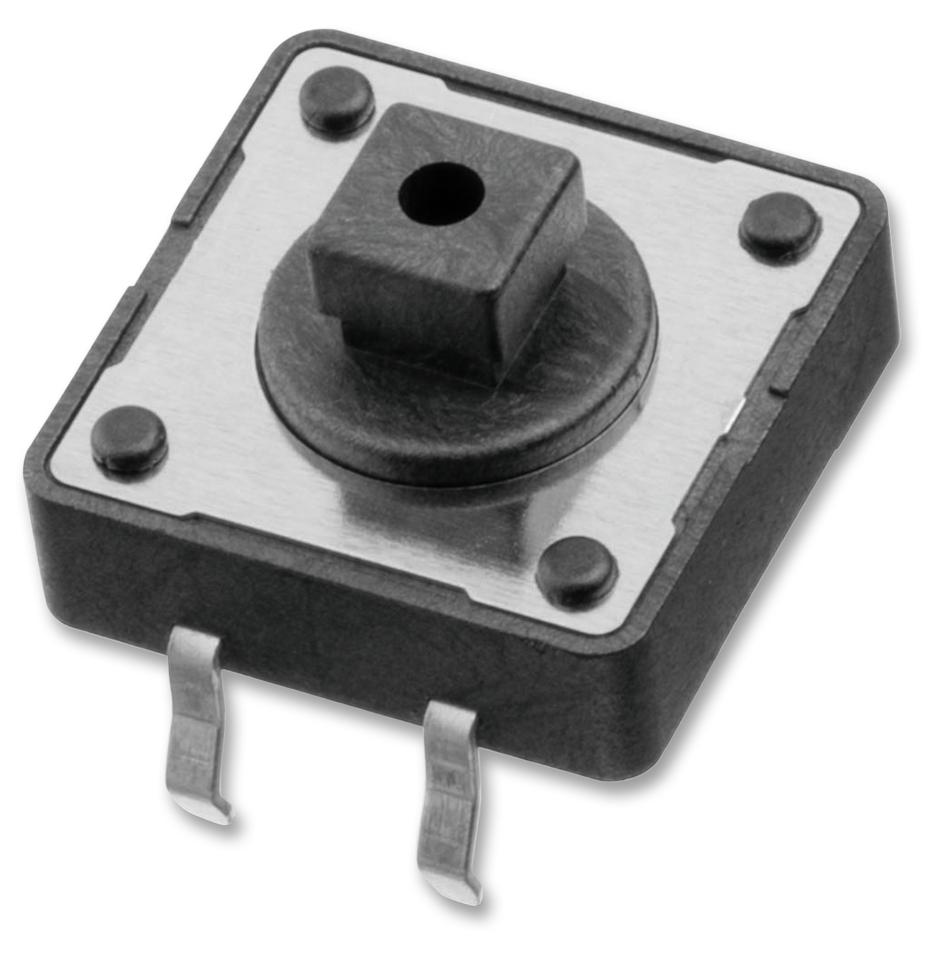

WURTH ELEKTRONIK 430476073716 Tactile Switch
This washable tactile switch features a square actuator and THT mounting style, designed for general electronics use. With a 24-position layout, it offers reliable switching with a stroke of 0.3 mm. Made of UL 94V-0 rated LCP material with stainless steel cover and contact, it supports a maximum rating of 50mA at 12VDC. Suitable for applications requiring durable, high-performance switches, it ensures consistent operation with a life cycle of up to 500,000 cycles. Its solder terminal design allows for wave or hand soldering, meeting RoHS and Reach compliance standards.
WURTH ELEKTRONIK 430476073716 Tactile Switch Specifications:
- Rating: 50mA, 12VDC
- Contact Resistance: Initial 100mOHM max., After Life Test 20mOHM max.
- Insulation Resistance: min. 100MOHM at 500VDC
- Dielectric Strength: 250VAC for 1 minute
- Stroke: 0.3 ± 0.1mm
- Material: Cover stainless steel, Stem UL 94V-0 LCP, Frame UL 94V-0 LCP, Contact stainless steel with silver cladding, Terminal copper alloy with tin plating, Tape polyimide
- Soldering: Wave soldering at 260°C for 10 sec. max., Hand soldering under 350°C for 3 sec. max
- Compliance: Lead-Free, ROHS, Reach
- Life Cycle: 200,000 to 500,000 cycles depending on model
- Packaging: Bulk
Buy the Buy Wurth Elektronik Tactile Switch Part Number 430476073716 Online
Enhance your electronic projects with this washable THT tactile switch featuring a square actuator and durable stainless steel cover. Designed for reliability, it supports up to 500,000 cycles, making it ideal for general electronic equipment, home appliances, and control panels. Its UL 94V-0 rated LCP material and silver-clad contacts ensure consistent electrical performance, while the solder terminal allows easy mounting via wave or hand soldering. Compliant with RoHS and Reach standards, this switch guarantees safety and quality in every application.
Buy Wurth Elektronik 430476073716 tactile switch now and experience reliable performance with a high cycle life for durable electronic designs.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 430476073716?
You can click on the BUY or RFQ button to purchase 430476073716 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 430476073716?
You can download the 430476073716 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 430476073716?
WURTH ELEKTRONIK
