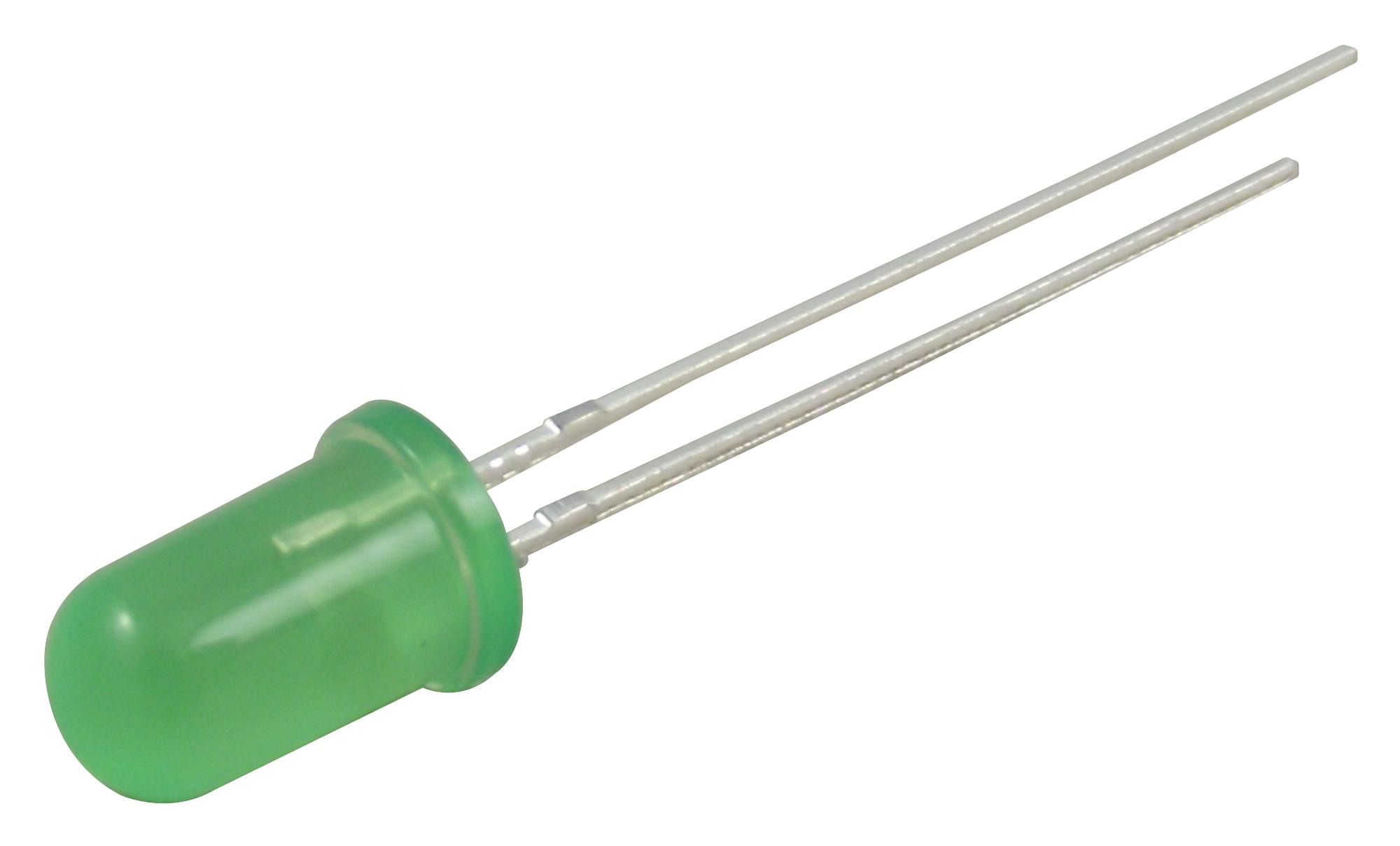

WURTH ELEKTRONIK 151051VS04000 THT Round Mono Color LED
The WURTH ELEKTRONIK 151051VS04000 is a through-hole (THT) round mono-color LED designed for general electronic equipment. It emits bright green light through a diffused lens, providing a wide viewing angle. This LED is suitable for various applications requiring a compact and reliable light source, such as indicator lights and displays. It operates within a temperature range of -40°C to +85°C and is RoHS compliant. Würth Elektronik eiSos GmbH & Co. KG emphasizes that this component is not intended for use in safety-critical applications without proper evaluation and agreement.
WURTH ELEKTRONIK 151051VS04000 THT Round Mono Color LED Specifications:
- Optical Properties: Bright Green
- Lens Type: Color diffused
- Power Dissipation: 75 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold HBM: 2000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level (MSL): 1
- Peak Wavelength: 573 nm
- Dominant Wavelength: 572 nm
- Luminous Intensity: 80-140 mcd
- Forward Voltage: 2.1-2.4 V
- Spectral Bandwidth: 15 nm
- Reverse Current: ≤10 μA
- Viewing Angle: 40°
Buy the 151051VS04000 WURTH ELEKTRONIK THT Round Mono Color LED | myMectronic
Purchase the WURTH ELEKTRONIK 151051VS04000 THT LED securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 151051VS04000?
You can click on the BUY or RFQ button to purchase 151051VS04000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 151051VS04000?
You can download the 151051VS04000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 151051VS04000?
WURTH ELEKTRONIK
