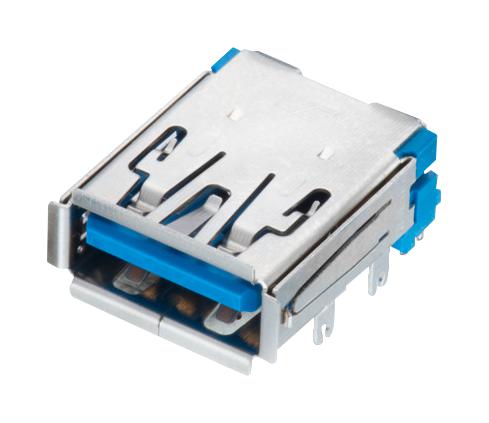

WURTH ELEKTRONIK 632121300001 USB Receptacle
This USB 3.1 Type A receptacle features a horizontal through-hole design, gold-over-Pa-Ni contact plating, and a rugged copper alloy contact material. It supports power delivery with a maximum working voltage of 20 VDC, a 5A current rating, and an operating temperature range of -20°C to +85°C. The component complies with RoHS and lead-free regulations, offers high durability for up to 5,000 mating cycles, and is suitable for high-reliability applications requiring secure connections, including power supply and data transfer functions in electronic systems.
WURTH ELEKTRONIK 632121300001 USB Receptacle Specifications:
- Flammability Rating: UL94-Vo
- Contact Material: Copper Alloy
- Contact Plating: Gold over Pa-Ni
- Insulation Resistance: 100 MΩ
- Working Voltage: 20 VDC MAX
- Max Current Rating: 5 A
- Temperature Range: -20°C to +85°C
- Dielectric Withstanding Voltage: 100 VAC/MIN
- Insertion Force: 35.0 N MAX
- Extraction Force: 10.0 N MIN
- PCB Thickness: 1.60 mm
- RoHS and Lead-Free Compliant
- Durability: 5,000 mating cycles
- Package: 10x10=100 pcs per tray, 25 trays per carton
Buy the Wurth Series USB 3.1 Type A Receptacle: 632121300001
Purchase the USB 3.1 Type A Receptacle online today to ensure your electronic assembly benefits from high-quality, durable connections. This component supports power delivery up to 20V DC and 5A current, with a robust copper alloy contact structure plated in gold over Pa-Ni for excellent corrosion resistance and reliable performance. Designed to withstand up to 5,000 mating cycles, it is RoHS compliant and suitable for demanding applications such as high-speed data transfer and power systems in electronics manufacturing. Easy to install with a standard 1.60mm PCB thickness, ensuring seamless integration into your designs.
Buy Wurth USB 3.1 Type A Receptacle now and experience reliable high-speed data transfer and power delivery in your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 632121300001?
You can click on the BUY or RFQ button to purchase 632121300001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 632121300001?
You can download the 632121300001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 632121300001?
WURTH ELEKTRONIK
