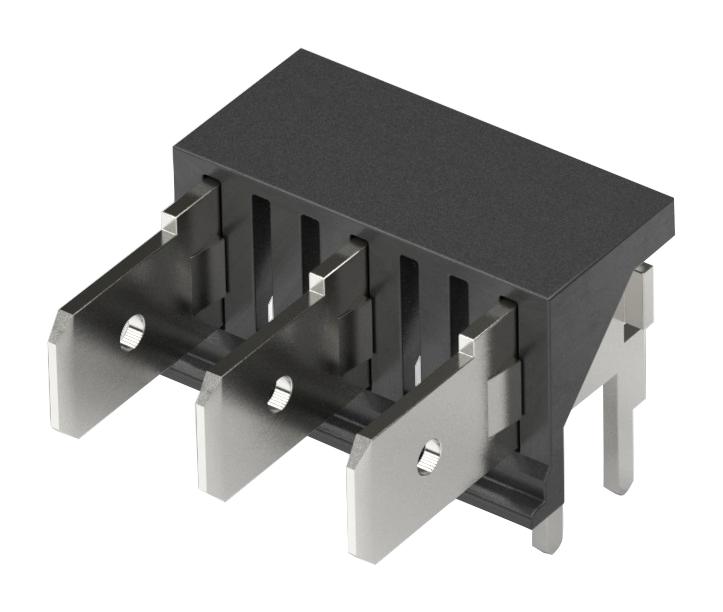

WURTH ELEKTRONIK 638363122007 Male Right Angled Header Blade
The Würth Elektronik 638363122007 is a male right-angled header blade designed for use in general electronic equipment. It is not intended for use in applications requiring high safety or reliability standards without specific agreements. This terminal block offers a secure and efficient connection solution, suitable for a wide range of electronic assemblies. It is RoHS compliant and manufactured to DIN ISO 2768-1m standards, ensuring consistent quality and performance. The header blade is part of the WR-FAST series and features a 7.62mm pitch, making it compatible with standard terminal block systems.
WURTH ELEKTRONIK 638363122007 Male Right Angled Header Blade Specifications:
- Recommended Hole: 1, 5.08 ±0.1, O 1.5 ±0.1
- Pattern pl: ±0.2
- End: 7.62 ±0.1
- Pin to Pin (Middle): 45.72
- Length: 49.84
- Pins: 7
- Insulator Material: PC
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Black
- Contact Material: Steel
- Contact Plating: Tin
- Contact Type: Stamped
- Durability: 500 Mating cycles
- Pitch: 7.62
- Operating Temperature: -30 up to +120 °C
- Rated Current: 16 A
- Working Voltage: 300 V (AC)
- Insulation Resistance: 5 MΩ
- Withstanding Voltage: 1600 V (AC)
- Contact Resistance: 20 mΩ
- RoHS Approval: Compliant [ 2011/65/EU&2015/863 ]
- REACh Approval: Conform or declared [ (EC)1907/2006 ]
- Glow Wire Approval: Compliant [ IEC 60335-1 ]
- cULus Approval: E150931 [ Cat.N° : CQQ, CQS(3) ]
