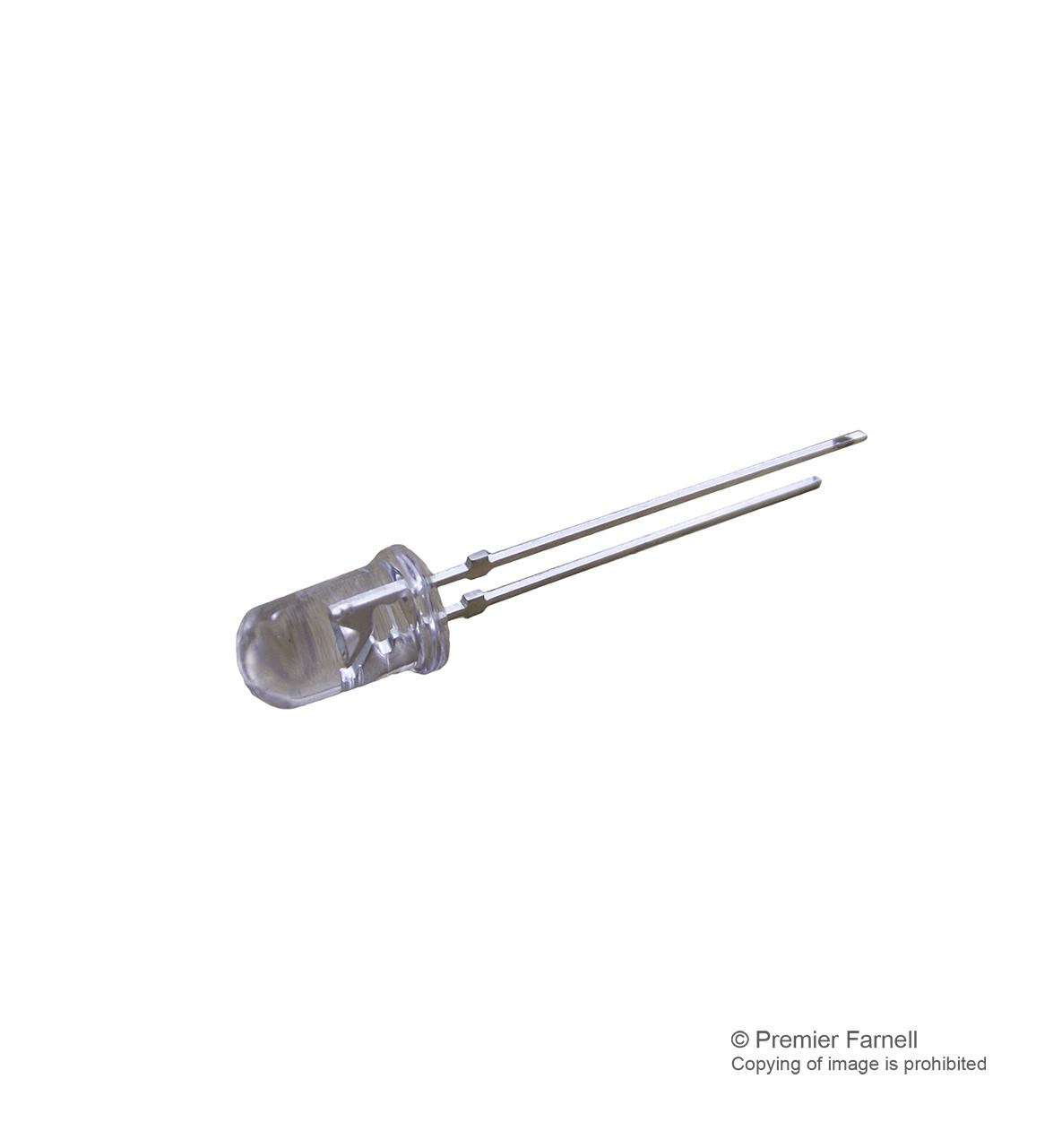

WURTH ELEKTRONIK 151053GS03000 Round Mono-color LED
The WURTH ELEKTRONIK 151053GS03000 is a through-hole mounted (THT) LED designed for general electronic equipment. This round, mono-color LED emits green light through a waterclear lens, providing excellent visibility. It's suitable for a wide range of applications where a compact and reliable light source is needed. The component is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 151053GS03000 Round Mono-color LED Specifications:
- Emitting Color: Green
- Lens Type: Waterclear
- Chip Technology: InGaN
- Power Dissipation: 108 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body Modell: 1000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level MSL: 1
- Peak Wavelength: 515 nm
- Dominant wavelength: 522 nm
- Luminous Intensity: 5000-10000 mcd
- Forward Voltage: 3.4-3.6 V
- Spectral Bandwidth: 30 nm
- Reverse Current: ≤ 50 μA
- Viewing Angle: 30°
