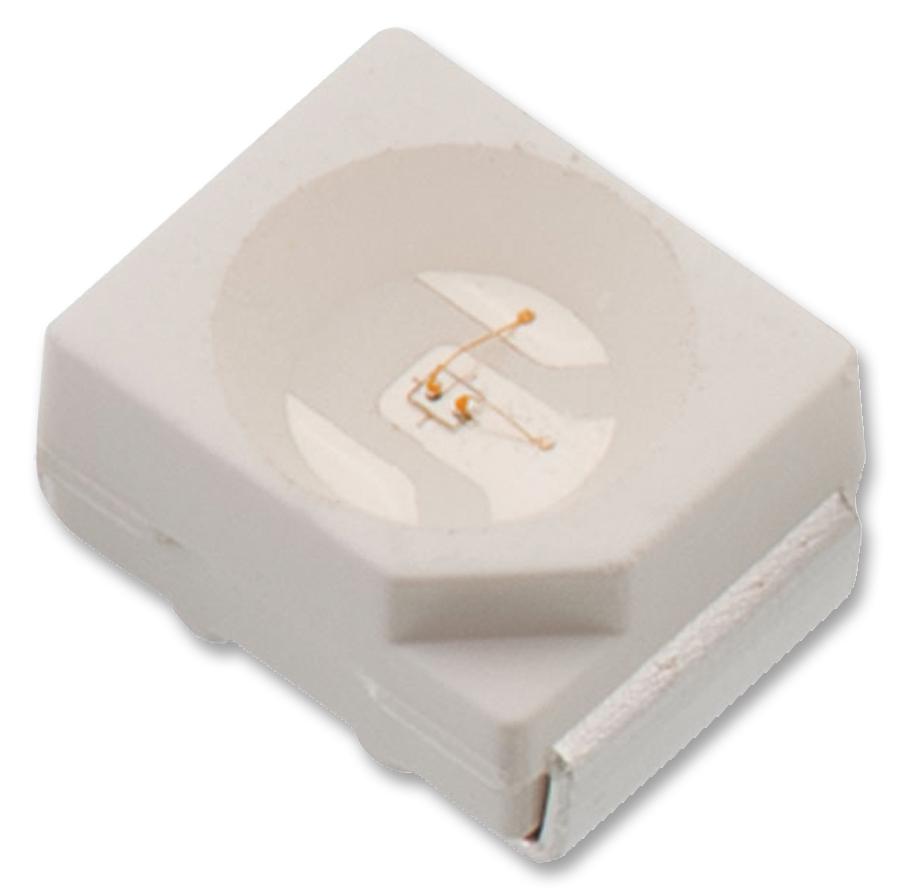

WURTH ELEKTRONIK 150141YS73100 Waterclear SMT LED
Waterclear SMT LED with yellow emission color, Top LED lens type, suitable for electronic equipment with a typical luminous intensity of 200-260 mcd at 20mA. It features an optical wavelength peak at 592 nm, a forward voltage of 2-2.4 V, and a viewing angle of 120°. Designed for general electronic use, it complies with RoHS, REACH, and halogen-free standards, operates within -40°C to +85°C, and requires proper handling to ensure long-term reliability.
WURTH ELEKTRONIK 150141YS73100 Waterclear SMT LED Specifications:
- Technology: AllnGaP
- Color: Yellow
- Lens Type: Top LED
- Peak Wavelength: 592 nm at 20 mA
- Dominant Wavelength: 590 nm
- Luminous Intensity: 200-260 mcd at 20 mA
- Forward Voltage: 2-2.4 V at 20 mA
- Spectral Bandwidth: 15 nm
- Reverse Current: 10 µA at 5 V
- Viewing Angle: 120°
- Operating Temperature: -40°C to +85°C
- Storage Conditions: Not exposed to sunlight, stored in original moisture-proof packaging
- RoHS, REACH, Halogen-Free compliant
- Moisture Sensitivity Level: 3
- Reflow Profile: Preheat to 150-200°C, max 60-120 seconds, Ramp rate 3°C/sec, Peak temperature 260°C
- Package: 3528 SMT package
Buy the Wurth Elektronik Series SMT LED: 150141YS73100
Order the Waterclear SMT LED in yellow from Wurth Elektronik today. This high-quality, reliable LED features a top lens design, peak wavelength of 592 nm, and luminous intensity up to 260 mcd. Perfect for general electronic projects, it operates efficiently within -40°C to +85°C, and complies with RoHS, REACH, and halogen-free standards. Designed for surface-mount technology, it ensures easy installation and long-term performance, making it the ideal choice for your optoelectronic needs.
Get Wurth Elektronik 150141YS73100 today—built for precision and long-lasting durability in optoelectronic applications.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 150141YS73100?
You can click on the BUY or RFQ button to purchase 150141YS73100 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 150141YS73100?
You can download the 150141YS73100 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 150141YS73100?
WURTH ELEKTRONIK
