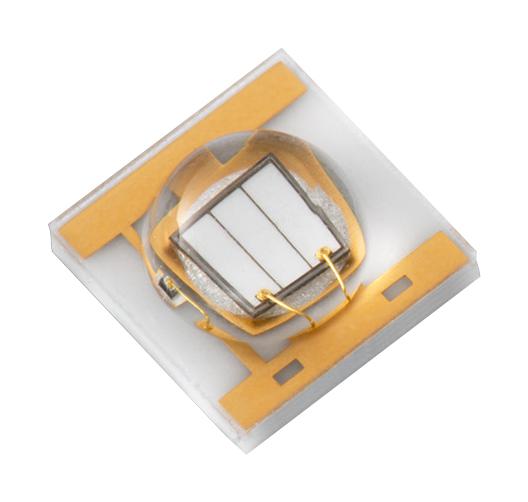

WURTH ELEKTRONIK 15335337AA350 Ultraviolet Ceramic Waterclear
The WURTH ELEKTRONIK 15335337AA350 is a compact UV LED designed for a wide range of applications requiring ultraviolet light emission. Its ceramic waterclear lens provides efficient light transmission, while its robust construction ensures reliable performance. Suitable for general electronic equipment, this LED is RoHS compliant and halogen-free, meeting environmental standards. Users should exercise caution due to the high intensity of the UV light emitted, and appropriate protective measures are recommended.
WURTH ELEKTRONIK 15335337AA350 Ultraviolet Ceramic Waterclear Specifications:
- Power Dissipation: 3.08 W
- Peak Forward Current: 1000 mA
- Continuous Forward Current: 700 mA
- ESD Threshold Human Body: 2000 V
- Absolute Thermal Resistance Junction to Solder Point: 5 K/W
- Junction Temperature: 125 °C
- Peak Wavelength: 365 nm
- Radiant Flux: 700 - 1000 mW
- Forward Voltage: 3.4 - 4.4 V
- Spectral Bandwidth: 15 nm
- Viewing Angle Phi 0°: 130 °
- Operating Temperature: -40 up to +85 °C
- Storage Conditions in original packaging: < 40 °C ; < 90 % RH
- Storage Conditions for single parts: -40 up to +85 °C
- Chip Technology: AlInGaN
- Emitting Color: Ultraviolet
- Lens Type: Dome
- RoHS Approval: Compliant [ 2011/65/EU&2015/863 ]
- REACh Approval: Conform or declared [ (EC)1907/2006 ]
- Halogen Free: Conform [ IEC 61249-2-21]
- Halogen Free JEDEC: Conform [ JEDEC JS709B ]
