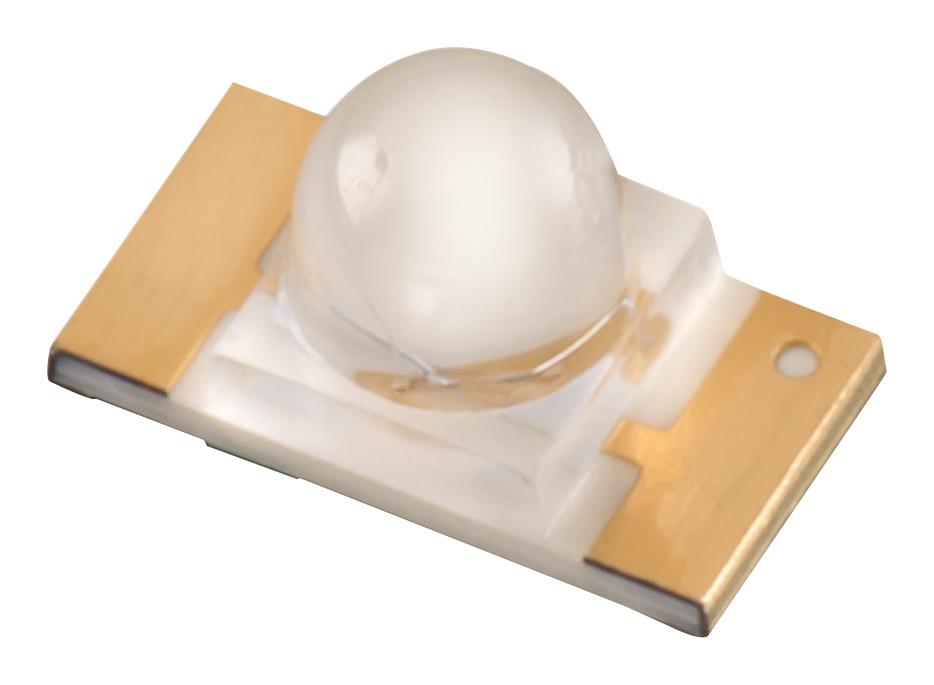

WURTH ELEKTRONIK 156120YS82500 Surface Mount LED
Waterclear SMT LED designed for efficient, reliable illumination in electronic devices. Features dome lens type, yellow emission, and a broad viewing angle of 285°. Operating within -40°C to +85°C, it offers a peak wavelength of 501 nm and luminous intensity from 450 to 1400 mcd at 20 mA. Its reverse mount form factor ensures versatile placement in compact designs while maintaining consistent optical performance. Suitable for various applications requiring bright, energy-efficient indicator lighting or display features in electronic assemblies.
WURTH ELEKTRONIK 156120YS82500 Surface Mount LED Specifications:
- Lens Type: Dome
- Emission Color: Yellow
- Viewing Angle: 285°
- Peak Wavelength: 501 nm at 20 mA
- Luminous Intensity: 450 to 1400 mcd at 20 mA
- Forward Voltage: 2.2 V at 20 mA
- Reverse Voltage: 5 V
- Maximum Peak Forward Current: 40 mA
- Continuous Forward Current: 20 mA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature: -40°C to +85°C; 60% RH max.
- Moisture Sensitivity Level: MSL 3
- ESD Threshold: 1000 V
- Absolute Max Power Dissipation: 48 mW
- Package Type: Tape and Reel, 8mm tape width
- Max Reflow Temperature: 260°C (Pb-Free, <1.6mm thickness)
Buy the Wirth Elektronik WL-SMRW – Reliable SMT LED for Industrial Applications
Enhance your electronic designs with the high-quality SMT LED from Wirth Elektronik. Featuring a reliable waterclear body, yellow emission, dome lens, and a broad viewing angle of 285°, it operates perfectly within -40°C to +85°C. Ideal for indicator lights, displays, and illumination in various industrial and consumer electronics. Its tape and reel packaging ensure easy handling and integration into automated assembly lines. Trust this LED for consistent performance, energy efficiency, and long-lasting illumination in your key projects.
Order your Wirth Elektronik Series WL-SMRW waterclear SMT LED today and give your projects the dependable, bright illumination they deserve.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 156120YS82500?
You can click on the BUY or RFQ button to purchase 156120YS82500 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 156120YS82500?
You can download the 156120YS82500 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 156120YS82500?
WURTH ELEKTRONIK
