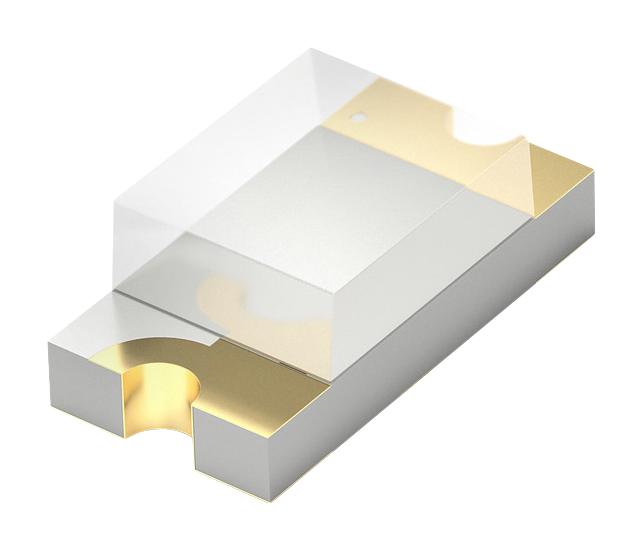

WURTH ELEKTRONIK 1541201NBA300 SMT Phototransistor
The Würth Elektronik 1541201NBA300 is a surface-mount phototransistor designed for general electronic equipment. It utilizes an NPN transistor with a waterclear lens to provide efficient light detection. Key specifications include a maximum collector current of 20mA, a collector-emitter voltage of 30V, and an operating temperature range of -40°C to +85°C. This phototransistor is suitable for applications requiring light-sensitive switching and signal amplification, commonly found in industrial automation, consumer electronics, and sensor systems. It is RoHS compliant and conforms to halogen-free standards, ensuring environmental responsibility. Würth Elektronik emphasizes that this component is not intended for use in safety-critical applications without proper evaluation and agreement.
WURTH ELEKTRONIK 1541201NBA300 SMT Phototransistor Specifications:
- Power Dissipation: 150 mW
- Collector Emitter Voltage: 30 V
- Emitter Collector Voltage: 5 V
- Continuous Collector Current: 20 mA
- ESD Threshold HBM: 2000 V
- Chip Technology: Si
- Polarity: NPN
- Lens Type: Waterclear
- Operating Temperature: -40 up to +85 °C
- Storage Conditions (in original packaging): < 40 °C ; < 90 % RH
- Storage Conditions (for single parts): -40 up to +100 °C
- Moisture Sensitivity Level: 3
- Wavelength of Peak Sensitivity: 940 nm
- Range of Spectral Bandwidth: 400-1100 nm
- Collector Current ICE.P: 0.1-1 mA
- Collector-Emitter Dark Current: ≤ 100 nA
- Viewing Angle Phi 0°: ≤ 130°
- RoHS Approval: Compliant [ 2011/65/EU&2015/863 ]
- REACh Approval: Conform or declared [ (EC)1907/2006 ]
- Halogen Free: Conform [ JEDEC JS709B ]
