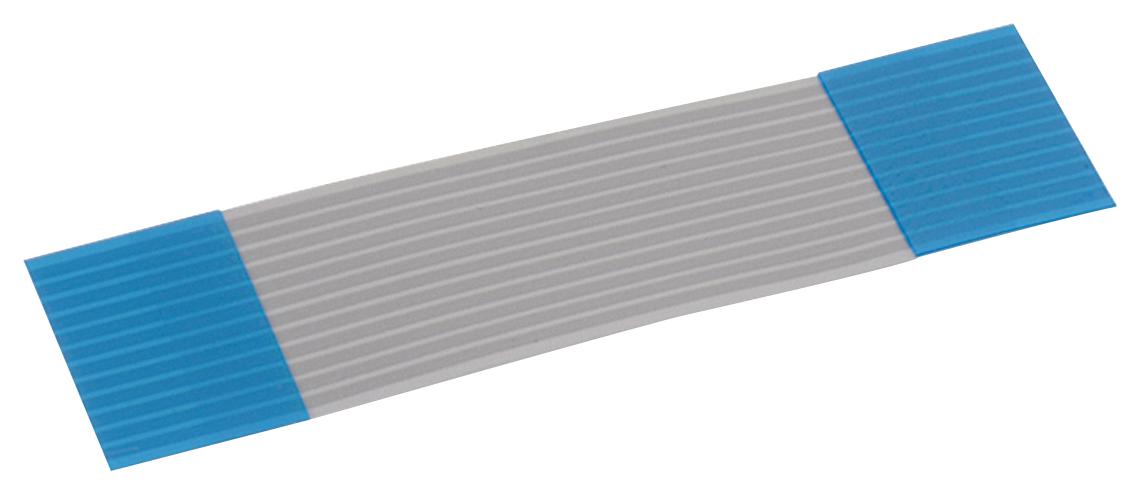

WURTH ELEKTRONIK 687622100002 Flexible Cable
The WR-FFC flat flexible cable is designed for high-density electronic connections, offering durability, flexibility, and reliable signal transmission. Made with PET insulators and copper conductors, it features a white insulation material and blue tape support for easy handling and precise positioning. The cable supports operating temperatures from -30°C to +105°C, withcertified flammability resistance and moisture durability. Suitable for precise electronic assemblies, it ensures long-term performance in various industrial, automation, and communication applications, meeting stringent international safety and quality standards.
WURTH ELEKTRONIK 687622100002 Flexible Cable Specifications:
- Insulation Material: PET (White)
- Conductor Material: Copper, Tin-plated
- Operating Temperature: -30°C to +105°C
- Flammability Rating: UL SUB.758
- Moisture Resistance: 40°C, 95% RH, 96 hours
- Rated Current: 0.5 A
- Working Voltage: 60 V
- Insulation Resistance: ≥1000 MΩ at 500 V
- Withstanding Voltage: 500 V for 1 minute, no breakdown
- Conductor Resistance: Max 14 mΩ
- Contact Resistance: Max 20 mΩ
- Cable Length: Standard packaging length 1.0 mm width, 50 mm and up to 5000 pcs per package.
Buy the Buy WURTH ELEKTRONIK Flat Flexible Cable Part Number 687622100002 Online
Order WURTH ELEKTRONIK flat flexible cable online today for excellent flexibility, durability, and high-performance signal transmission. Designed for industrial, communication, and automation equipment, it features PET insulation, copper conductors with tin-plating, operating from -30°C to +105°C, and conforms to UL flammability standards. Its moisture resistance and high insulation resistance ensure long-term reliability and safety. Purchase from our secure online store to benefit from fast delivery, competitive prices, and expert support, ensuring your electronic assemblies meet demanding specifications efficiently.
Get WURTH ELEKTRONIK flat flexible cable 687622100002 today—designed for high reliability and flexible electronic connections in industrial and automation systems.
