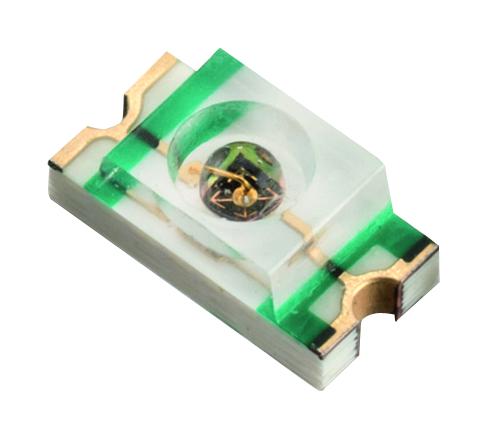

WURTH ELEKTRONIK 15412085A9000 Infrared LED
The WL-SICW SMT Infrared Chip LED is designed for precise infrared emission and high reliability in electronic applications. Featuring waterclear lens type and AlGaAs chip technology, it operates at 850 nm wavelength with a dome lens for effective light focus. It supports a forward current of 20 mA, with optical and electrical properties optimized for SMT assembly, including robust packaging, and is suitable for automation and sensing systems. Ideal for industrial, medical, and automation sectors requiring high-performance IR LEDs.
WURTH ELEKTRONIK 15412085A9000 Infrared LED Specifications:
- Wavelength: 850 nm at 20 mA
- Centroid Wavelength: 845 nm at 20 mA
- Radiant Intensity: 3.5 mW/sr at 20 mA
- Forward Voltage: 1.4 - 2.2 V at 20 mA
- Spectral Bandwidth: 30 nm
- Reverse Current: 10 pA at 5 V
- Viewing Angle: 90°, typical
- Operating Temperature: -40°C to +85°C
- Storage Conditions: < 40°C; < 90% RH
- Moisture Sensitivity Level: 3
- Chip Technology: AlGaAs
- Lens Type: Dome Waterclear
- Electrical & Optical Properties tested at 20 mA
- Packaging conforms to IEC 60286-3:2013, standard SMT reel packaging
- Max Package Thickness: less than 1.6 mm for Pb-Free assembly, up to 2.5 mm with adjusted temperatures
Buy the Wirth Series SMT Infrared LED: 15412085A9000
Enhance your electronic projects with the high-performance Infrared LED from Wirth Series, featuring 850 nm wavelength, dome waterclear lens, and 20 mA forward current. Designed for precision and durability, this IR LED ensures optimal performance in sensing, automation, and industrial applications. Its robust packaging and reliable optical properties make it an excellent choice for professional engineers and technicians aiming for high quality and long-term reliability. Order online today for fast delivery and superior technology integration.
Buy Wirth Series SMT Infrared LED now and experience unmatched reliability and high efficiency in optical sensing and automation systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 15412085A9000?
You can click on the BUY or RFQ button to purchase 15412085A9000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 15412085A9000?
You can download the 15412085A9000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 15412085A9000?
WURTH ELEKTRONIK
