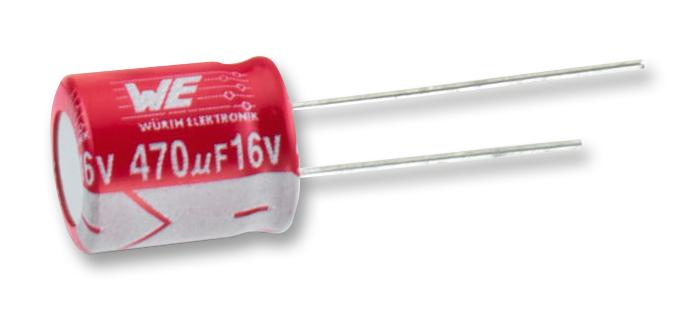

WURTH ELEKTRONIK 870235375008 Aluminum Polymer Capacitor
Wirth Elektronik eiSos GmbH & Co. KG offers the WCAP-PT5H aluminum polymer capacitors, designed for electronic equipment requiring high reliability and safety. These capacitors feature a size of 10.0 x 12.5 mm, operate from -55°C up to +105°C, and have a load life of 5,000 hours at 105°C with a maximum ripple current of 6100 mA at 105°C. They possess low ESR, high capacitance retention, and are RoHS & REACH compliant. Suitable for use in power supplies, filtering, and high-frequency circuits, they meet strict safety and performance standards, ensuring durability in critical applications.
WURTH ELEKTRONIK 870235375008 Aluminum Polymer Capacitor Specifications:
- Size: 10.0 x 12.5 mm
- Operating Temperature: -55°C to +105°C
- Load Life: 5000 hours at +105°C/16V (DC)
- Capacitance: 470 pF ±20% at 0.25V, 120Hz
- Rated Voltage: 16V DC
- Leakage Current: 752 HA max after 2 minutes
- Dissipation Factor: 10% at 120Hz
- ESR: 9 mΩ max at 100 kHz
- Ripple Current: 6100 mA max at 100 kHz/105°C
- RoHS & REACH compliant
- Material: Aluminum polymer
- Storage Conditions: 5°C to 35°C, <75% RH
- Soldering: Wave and hand soldering with specified temperature profiles
- Polarity: Marked with shorter negative terminal, positive terminal can be identified by marking
- Shelf life: End use before 12 months from delivery date
Buy the Buy Wirth Elektronik Aluminum Polymer Capacitors Part Number 870235375008 Online
Discover the convenience of purchasing the Wirth Elektronik WCAP-PT5H aluminum polymer capacitor online. With a size of 10.0 x 12.5 mm, operating temperature range from -55°C to +105°C, and a load life of 5,000 hours at 105°C, these capacitors offer high ripple current capacity, low ESR, and reliable performance in power supplies and high-frequency applications. RoHS and REACH compliant, they are suitable for critical systems demanding safety, durability, and efficiency in diverse electronic designs. Order now to enhance your projects with proven quality and fast delivery.
Order your Wirth Elektronik WCAP-PT5H series aluminum polymer capacitor today and ensure your electronic projects benefit from high stability and reliable performance.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 870235375008?
You can click on the BUY or RFQ button to purchase 870235375008 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 870235375008?
You can download the 870235375008 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 870235375008?
WURTH ELEKTRONIK
