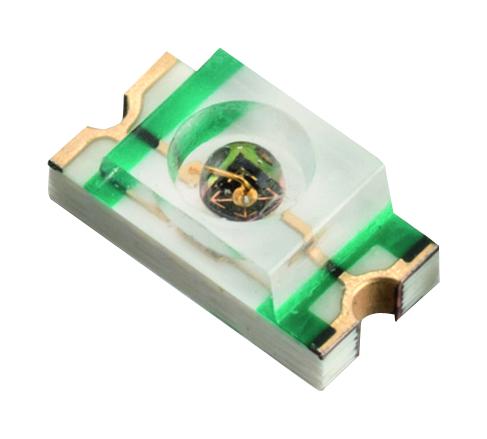

WURTH ELEKTRONIK 15412094A9000 SMT Infrared Chip LED
The WURTH ELEKTRONIK 15412094A9000 is a surface-mount technology (SMT) infrared chip LED designed for general electronic applications. It emits high-intensity infrared light with a peak wavelength of 940nm and a radiant intensity of 5.5 mW/sr. This LED is suitable for various applications including remote controls, optical sensors, and data transmission systems. It is important to note that this product is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 15412094A9000 SMT Infrared Chip LED Specifications:
- Polarity Mark: Yes
- Power Dissipation PDiss: 119 mW
- Peak Forward Current IF Peak: 700 mA
- Continuous Forward Current IF: 70 mA
- Reverse Voltage VREV: 5 V
- ESD Threshold VESD HBM: 2000 V
- Chip Technology: AlGaAs
- Emitting Color: Infrared
- Lens Type: Dome Waterclear
- Operating Temperature: -40 up to +85 °C
- Storage Conditions in Original Packaging: -40 °C ; < 90 % RH
- Storage Conditions for Single Parts: -40 up to +85 °C
- Moisture Sensitivity Level MSL: 3
- Peak Wavelength λPeak: 940 nm
- Centroid Wavelength λCentroid: 940 nm
- Radiant Intensity Ie: 5.5 mW/sr
- Forward Voltage VF: 1.2 - 1.5 V
- Spectral Bandwidth Δλ: 30 nm
- Reverse Current IREV: 10 µA
- Viewing Angle Phi 0°: 90°
- Dimensions: 2.0 ±0.1 mm x 3.0 ±0.1 mm
Buy the 15412094A9000 WURTH ELEKTRONIK SMT Infrared Chip LED | myMectronic
Purchase the WURTH ELEKTRONIK 15412094A9000 SMT Infrared Chip LED securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 15412094A9000?
You can click on the BUY or RFQ button to purchase 15412094A9000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 15412094A9000?
You can download the 15412094A9000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 15412094A9000?
WURTH ELEKTRONIK
