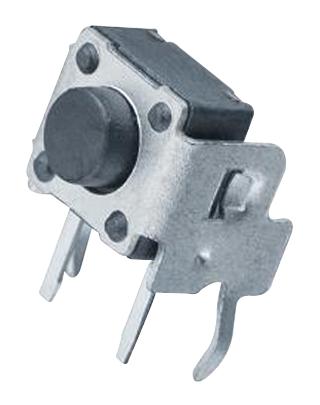

WURTH ELEKTRONIK 431256038716 Tact Switch
The WS-TST 6x6mm right angle tact switch is a surface-mount component designed for reliable switching in electronic circuits. It offers a 50mA, 12VDC rating, with a stroke of 0.25 mm, making it suitable for precise applications. The switch features a copper alloy terminal with tin plating for excellent conductivity and corrosion resistance. Compliant with RoHS and Reach standards, it is suitable for both storage and operation within -40°C to +85°C. This tact switch is ideal for limited-space contexts requiring durable, high-cycle performance.
WURTH ELEKTRONIK 431256038716 Tact Switch Specifications:
- Rating: 50mA, 12VDC
- Contact Resistance: Initial 100mΩ max, After Life Test 2Ω max
- Insulation Resistance: Min. 100MOHM at 500VDC
- Dielectric Strength: 250VAC for 1 minute
- Stroke: 0.25 +0.2mm /- 0.1mm
- Material: Carbon Steel Plate, LCP UL 94V-0, Stainless Steel with silver cladding, Copper alloy with tin plating
- Soldering: Wave soldering 260°C 10sec max, Hand soldering under 350°C for 3 sec max
- Environmental: Storage and operation -40°C to +85°C, Lead Free, ROHS, Reach
- Life Cycle: 200,000 cycles
- Color Options: Black, White, Salmon
- Projection: 6x6mm right angle
- Packaging: Bulk
Buy the Buy Wurth Elektronik Tact Switch Part Number 431256038716 Online
Purchase the Wurth Elektronik tact switch 431256038716 online and enjoy reliable, high-cycle switching for compact electronic applications. This 6x6mm surface-mount switch features a 50mA, 12VDC rating, a 0.25mm stroke, and a lifespan of 200,000 cycles. Made with durable materials like copper alloy and stainless steel, it complies with RoHS and Reach standards, performing efficiently in temperatures from -40°C to +85°C. Perfect for automated assemblies requiring precise, long-lasting tactile response and compact design.
Get Wurth Elektronik tact switch 431256038716 today—designed for durability and high cycle performance in compact electronic systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 431256038716?
You can click on the BUY or RFQ button to purchase 431256038716 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 431256038716?
You can download the 431256038716 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 431256038716?
WURTH ELEKTRONIK
