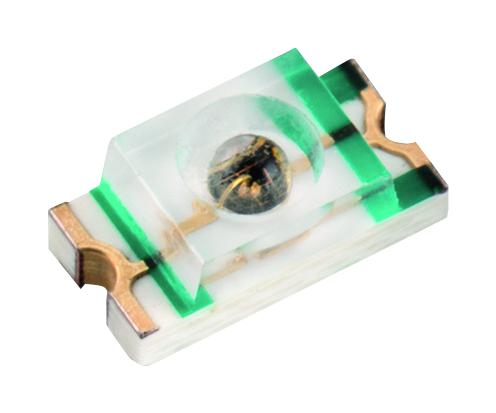

WURTH ELEKTRONIK 15412094BA400 Infrared LED
The SMT Infrared Chip LED with waterclear lens by Wirth Elektronik is designed for precise infrared emission, featuring AlGaAs chip technology. It operates efficiently at 25°C, with a peak wavelength of 940 nm and a radiant intensity of 0.5 to 1 mW/sr at 20 mA. The component has a forward voltage range of 1.2 to 1.8 V at 20 mA, spectral bandwidth of 50 nm, and an viewing angle of 140°. Includes RoHS, REACH, and halogen-free certifications, suitable for applications requiring high reliability and safety in Infa-red optical sensing and signaling systems.
WURTH ELEKTRONIK 15412094BA400 Infrared LED Specifications:
- Peak Wavelength: 940 nm at 20 mA
- Centroid Wavelength: 940 nm at 20 mA
- Radiant Intensity: 0.5 to 1 mW/sr at 20 mA
- Forward Voltage: 1.2 to 1.8 V at 20 mA
- Spectral Bandwidth: 50 nm at 20 mA
- Reverse Current: 10 μA at 5 V
- Viewing Angle: 140°
- Operating Temperature: -40°C to +85°C
- Storage Conditions: < 40°C, < 90% RH, or -40°C to +85°C
- Moisture Sensitivity Level: 3
- RoHS, REACH, Halogen Free Certified
- Package Size: 1206
- Material: Waterclear lens, AlGaAs chip
Buy the Buy Wirth Elektronik Infrared LED Part Number 15412094BA400 Online
Order the Infrared LED with part number 15412094BA400 from Wirth Elektronik online today. This high-performance infrared emitter features an AlGaAs chip, waterclear lens, and operates at 940 nm. Designed for optical sensing, signaling, and automation systems, it offers reliable performance across temperatures from -40°C to +85°C. Certified RoHS, REACH, and halogen-free, this LED ensures compliance with international environmental standards. Perfect for applications demanding high reliability, safety, and efficiency in infrared technology, making your electronic projects more effective and compliant.
Buy Wirth Elektronik infrared LED part number 15412094BA400 now and experience high reliability, precise infrared emission, and certified safety standards.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 15412094BA400?
You can click on the BUY or RFQ button to purchase 15412094BA400 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 15412094BA400?
You can download the 15412094BA400 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 15412094BA400?
WURTH ELEKTRONIK
