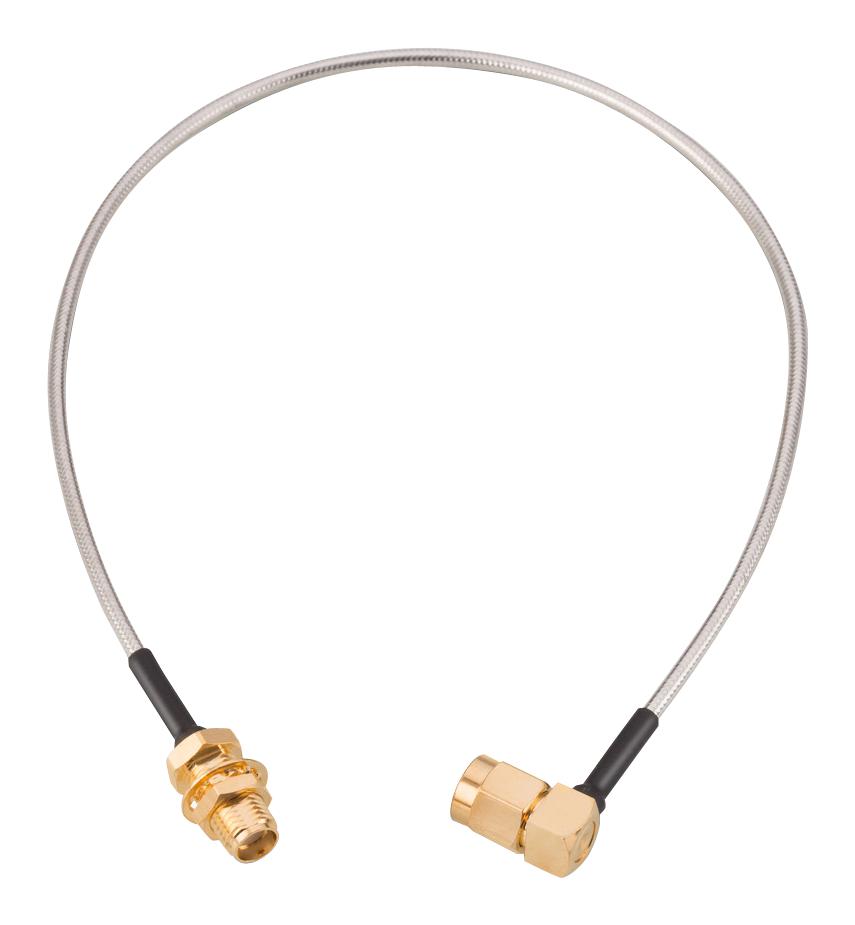

WURTH ELEKTRONIK 65503603215308 RF Connector
The SMA right angle plug to SMA straight bulkhead jack connector set is designed for high-frequency signal transmission up to 18 GHz, featuring gold-plated brass contacts, PTFE insulators, and nickel-plated bodies for durability and excellent conductivity. It includes a formable cable with PE heat shrink tubing in black, and components are compliant with PoHS standards. Suitable for RF applications requiring reliable impedance matching, low insertion loss, and high mechanical stability. Ideal for telecommunications, instrumentation, and other electronic systems demanding robust microwave connectors.
WURTH ELEKTRONIK 65503603215308 RF Connector Specifications:
- Connector Type: SMA Right Angle Plug to SMA Straight Bulkhead Jack
- Material: Brass, PTFE Insulator, Nickel and Gold Plating
- Heat Shrink Tube Material: PE, Color: Black
- Impedaance: 50 Ω
- Frequency Range: DC to 18 GHz
- Insertion Loss: Max 0.87 dB at 18 GHz
- VSWR: Max 1.5 at 18 GHz
- Impedance: 50 Ohms
- Operating Temperature: -65°C to +165°C
- Maximum Working Voltage: 250 V RMS
- Mating Cycles: 500
- Center Contact Material: Brass with Gold Plating
- Cable Type: Hand-Formable, 0.085 inches (2.16 mm) diameter
- Package: Bag, 10 units packed
Buy the Wirth Elektronik Series RF Connector: SMA Right Angle Plug to SMA Bulkhead Jack 65503603215308
Order the Wirth Elektronik RF connector set online today to ensure your RF and microwave systems have reliable, high-quality connections. Featuring gold-plated brass contacts, PTFE insulators, and a durable nickel-plated body, these connectors are designed for demanding high-frequency applications up to 18 GHz. The package includes a formable cable with PE heat shrink tubing in black, providing excellent impedance matching, low insertion loss, and high mechanical stability. Perfect for telecommunications, instrumentation, and aerospace projects, these connectors guarantee robust and consistent performance in your electronic systems.
Buy Wirth Elektronik SMA connectors now and experience unmatched reliability and performance in high-frequency RF applications.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 65503603215308?
You can click on the BUY or RFQ button to purchase 65503603215308 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 65503603215308?
You can download the 65503603215308 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 65503603215308?
WURTH ELEKTRONIK
