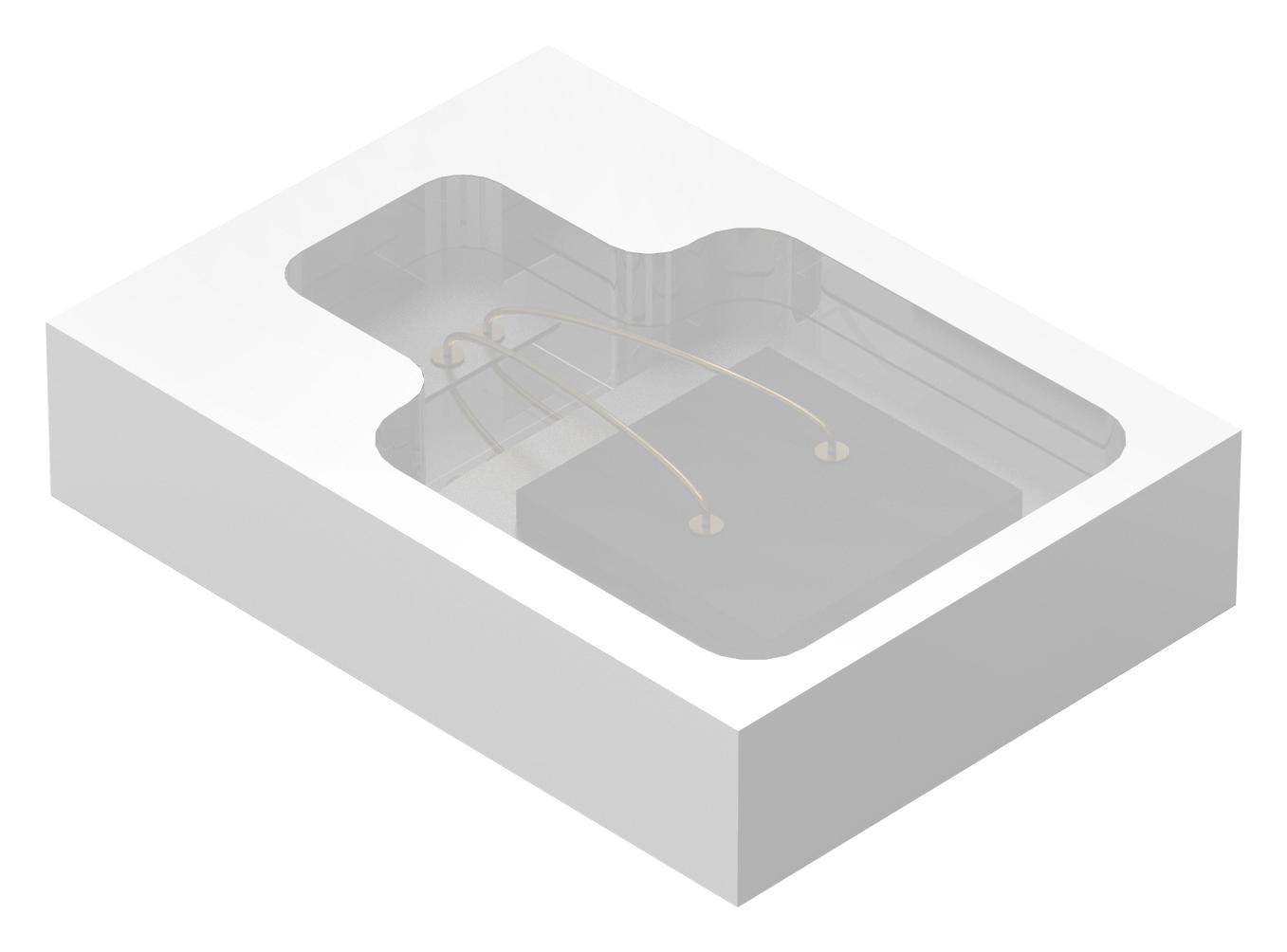

WURTH ELEKTRONIK 15427285BA240 Infrared LED
This high-reliability infrared QFN LED features waterclear lens type, allnGaAs chip technology, and emission in infrared spectrum. Operating within -40°C to +85°C, it offers peak wavelength at 850 nm and spectral bandwidth of 40 nm. With forward voltage between 1.8V and 2.2V at 1000 mA, it provides radiant flux up to 450 mW and radiant intensity of 160 mW/sr. It complies with RoHS, REACh, and halogen-free standards, suitable for industrial, medical, and safety-critical applications requiring robust optoelectronic components.
WURTH ELEKTRONIK 15427285BA240 Infrared LED Specifications:
- Operating Temperature: -40°C to +85°C
- Wavelength: 850 nm (peak), 845 nm (centroid)
- Spectral Bandwidth: 40 nm
- Forward Voltage: 1.8V to 2.2V at 1000 mA
- Radiant Flux: 350 to 450 mW at 1000 mA
- Radiant Intensity: 160 mW/sr
- Peak Wavelength: 850 nm
- Viewing Angle: 120°
- Lens Type: Waterclear
- Package Type: QFN
- Certifications: RoHS, REACh, Halogen Free
- Storage Conditions: -40°C to +85°C, 90% RH
- Certification Standards: IEC 62471, IEC 62778
- Soldering Profile: As per IPC/JEDEC J-STD-020E
- Soldering Pad Pattern: Optimized for high-density assembly
- Dimensions: Typical Tolerance ±0.1 mm
- Compliance: RoHS, REACh, Halogen Free
- Electrical & Optical Testing: Standard IEC 60825-1 compatible
- Packaging: Reel according to IEC 60286-3:2019
Buy the WURTH ELECTRONIK 15427285BA240 – Reliable Infrared LED for Industrial Applications
Purchase the WURTH ELECTRONIK infrared LED 15427285BA240 now and ensure high-quality illumination for industrial, medical, safety-critical projects. This waterclear lens LED with allnGaAs technology offers robust performance within -40°C to +85°C, providing a peak wavelength of 850 nm and radiant flux up to 450 mW. Suitable for critical applications, it adheres to RoHS, REACh, and halogen-free standards. Efficient and reliable, order online today to upgrade your system with top-grade optoelectronic components available for quick delivery, ensuring your project’s success.
Order your WURTH ELECTRONIK 15427285BA240 infrared LED today and enhance your industrial, medical, or safety-critical systems with dependable optoelectronic performance.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 15427285BA240?
You can click on the BUY or RFQ button to purchase 15427285BA240 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 15427285BA240?
You can download the 15427285BA240 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 15427285BA240?
WURTH ELEKTRONIK
