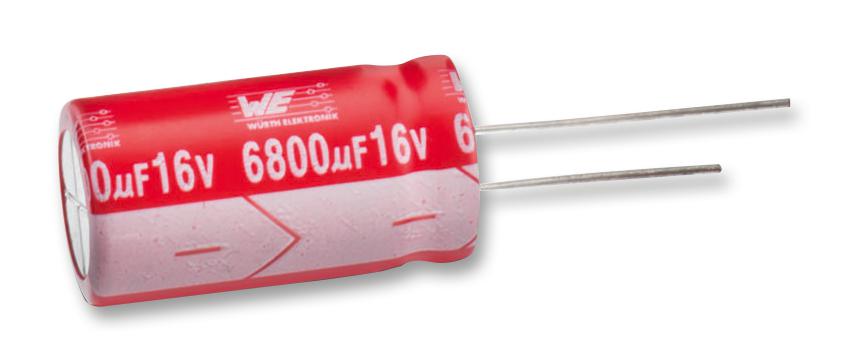

WURTH ELEKTRONIK 860160275025 Aluminum Electrolytic Capacitor
The WURTH ELEKTRONIK WCAP-ATLL series is an aluminum electrolytic capacitor designed for general electronic equipment. These capacitors offer reliable performance and are suitable for a wide range of applications, including power supplies, filtering, and decoupling. They are not intended for use in equipment requiring high safety or reliability standards without proper evaluation and agreement. The capacitor's specifications include a capacitance of 680µF, a rated voltage of 10V DC, and a maximum operating temperature of +105°C. Proper polarity must be observed during operation to ensure optimal performance and prevent damage.
WURTH ELEKTRONIK 860160275025 Aluminum Electrolytic Capacitor Specifications:
- Capacitance: 680 µF
- Rated Voltage: 10 V (DC)
- Dissipation Factor: 19 % (typ.)
- Ripple Current: 684 mA (max. @ 100kHz, 105°C)
- Impedance: 0.20 Ω (max. @ 100kHz, 20°C)
- Operating Temperature: -55 °C up to +105 °C
- Storage Conditions: 35°C, <45% RH
- Load Life: 7000 h @ +105°C / 10 V (DC)
- Component Marking 1st Line: Capacitance value: 680 µF & Rated voltage: 10 V (DC)
- Component Marking 2nd Line: WCAP-ATLL & max. operating temperature +105°C
- Component Marking 3rd Line: Datecode: YWW
- Component Marking 4th Line: VENT marking
- Dimensions a: 0.9 mm
- Dimensions b: 5.0 mm
- Dimensions D: 10.0 mm
- Dimensions L: 12.5 mm
- Dimensions t: 1.5 mm
- Pin Diameter: 0.6 mm
Buy the 860160275025 WURTH ELEKTRONIK Aluminum Electrolytic Capacitor | myMectronic
Purchase the WURTH ELEKTRONIK 860160275025 Aluminum Electrolytic Capacitor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 860160275025?
You can click on the BUY or RFQ button to purchase 860160275025 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 860160275025?
You can download the 860160275025 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 860160275025?
WURTH ELEKTRONIK
