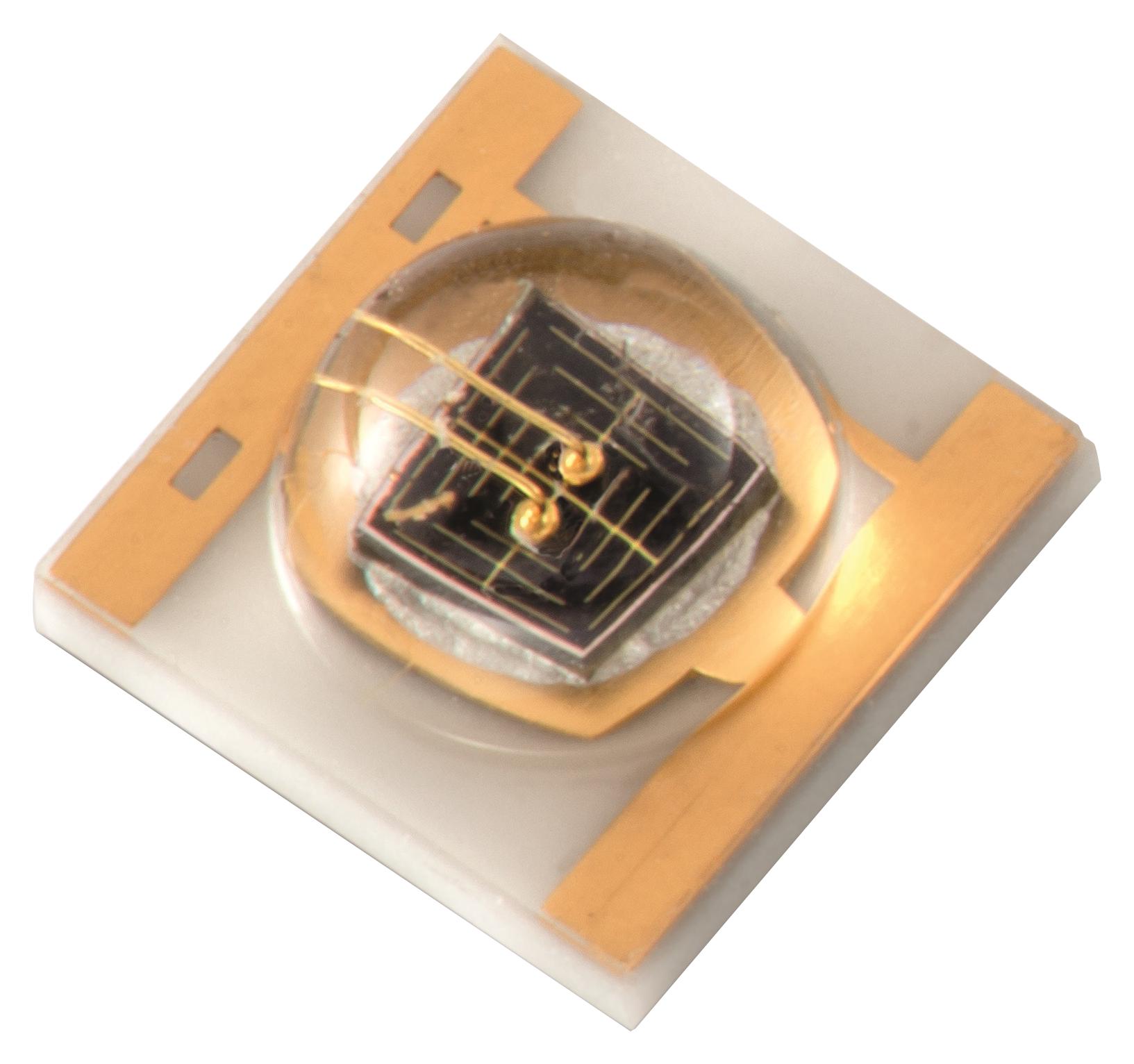

WURTH ELEKTRONIK 15435385AA350 Infrared Ceramic
Waterclear IR ceramic with infrared emission in a silicone dome lens, ideal for optical and electronic applications requiring high radiant flux of up to 860 mW at 1000 mA. Designed for efficient heat management with thermal resistance options, this infrared ceramic component operates at an ambient temperature range from -40°C to +85°C, with a maximum junction temperature of 115°C. Suitable for use in industrial, automation, and sensing systems, it features a peak wavelength around 855 nm and a spectral bandwidth of 35 nm, ensuring precise infrared emission for specialized devices.
WURTH ELEKTRONIK 15435385AA350 Infrared Ceramic Specifications:
- Peak Wavelength: 855 nm at 1000 mA
- Centroid Wavelength: 850 nm at 1000 mA
- Radiant Flux: 560 to 860 mW at 1000 mA
- Spectral Bandwidth: 35 nm at 1000 mA
- Viewing Angle: 130° to 28554, typical 30°
- Forward Voltage: 1.5 V to 2.2 V at 1000 mA
- Peak Forward Current: 1500 mA duty cycle 10% at 1 kHz
- Continuous Forward Current: 1000 mA
- ESD Threshold: 8000 V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature: -40°C to +115°C
- Thermal Resistance Junction to Solder Point: 10 K/W
- Package Thickness: Less than 1.6 mm to 2.5 mm, peak temperature 260°C
- Moisture Sensitivity Level: MSL 2
- Certificate: RoHS Compliant, suitable for industrial applications
Buy the Buy Wirth Elektronik Infrared Ceramic Part Number 15435385AA350 Online
Discover the high-performance Infrared Ceramic from Wirth Elektronik, featuring peak wavelength around 855 nm, silicone dome lens, and radiant flux up to 860 mW at 1000 mA. Designed for precise infrared emission, it suits optical, sensing, and industrial applications requiring durability and efficiency. Operating reliably within a temperature range from -40°C to +85°C, with optional thermal resistance and moisture sensitivity specifications, this component ensures optimal performance. Buy online now to incorporate a reliable, high-quality infrared emitter into your electronic system for consistent, long-lasting results.
Get Wirth Elektronik infrared ceramic component 15435385AA350 today—engineered for high radiant flux, precise infrared emission, and long-lasting durability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 15435385AA350?
You can click on the BUY or RFQ button to purchase 15435385AA350 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 15435385AA350?
You can download the 15435385AA350 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 15435385AA350?
WURTH ELEKTRONIK
