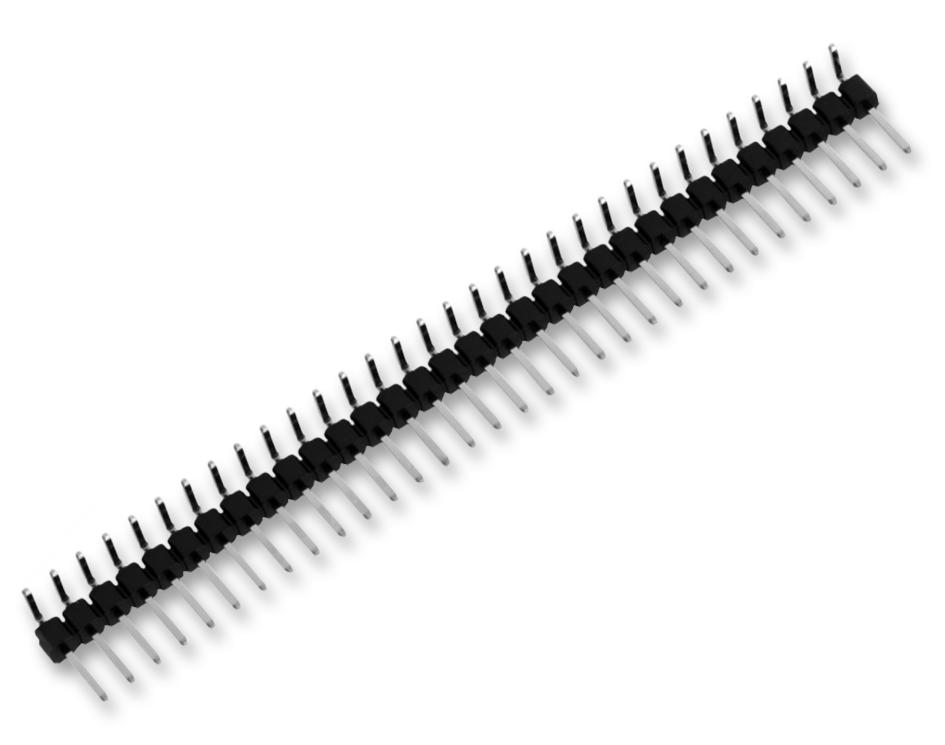

WURTH ELEKTRONIK 61303611021 Angled Pin Header
Wurth Elektronik's WR-PHD Angled Pin Header is a high-quality, reliable connector designed for electronics applications. It features a 2.54 mm pitch, gold-plated copper alloy contacts, and UL94V-0 rated black PABT insulator. With 36 pins and a pin-to-pin middle distance of 88.9 mm, it supports up to 25 mating cycles. Suitable for wave soldering, its operating temperature ranges from -40°C to +105°C. It ensures excellent electrical conductivity, durability, and compliance with RoHS and REACH standards, making it ideal for industrial electronics.
WURTH ELEKTRONIK 61303611021 Angled Pin Header Specifications:
- Pins: 36
- Pin to Pin (Middle): 88.9 mm
- Length L: 91.44 mm
- Pitch: 2.54 mm
- Durability: 25 Mating cycles
- Material: Copper Alloy
- Contact Plating: Gold
- Insulator Material: PABT
- Insulator Color: Black
- Operating Temperature: -40°C to +105°C
- Rated Current: 3 A
- Working Voltage: 250 V AC
- Withstanding Voltage: 500 V for 1 min
- Contact Resistance: Max. 20 mΩ
- Insulation Resistance: Min. 1000 MΩ
- Flammability Rating: UL94V-0
Buy the Wurth Elektronik WR-PHD Angled Pin Header – Reliable Connectors for Industrial Applications
Secure your electronic projects with the Wurth Elektronik angled pin header, offering 36 gold-plated contacts, 2.54 mm pitch, and high durability. Designed for PCB assembly, it supports 25 mating cycles and operates in temperatures from -40°C to +105°C. Its robust construction ensures excellent electrical conductivity, low contact resistance, and high reliability, perfect for industrial, automation, and control systems. Order online now for quick delivery and ensure your electronic connections are dependable, durable, and compliant with international safety standards.
Buy Wurth Elektronik WR-PHD angled pin header now and experience unmatched reliability and performance in PCB connections and industrial electronics.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61303611021?
You can click on the BUY or RFQ button to purchase 61303611021 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61303611021?
You can download the 61303611021 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61303611021?
WURTH ELEKTRONIK
