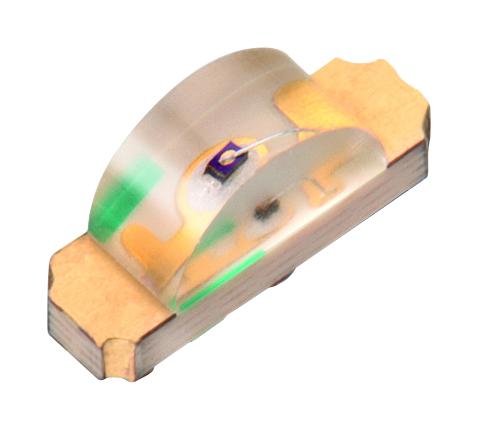

WURTH ELEKTRONIK 155060RS73200 Red LED
Waterclear SMT mono-color LED designed for surface mounting applications, emitting red light at 632 nm with a luminous intensity of 45 to 150 mcd at 20 mA. It features allnGaP chip technology, a waterclear lens type, and operates within a temperature range of -40°C to +85°C. The component complies with RoHS, REACH, and halogen-free standards, making it suitable for general electronic use. Key specifications include a forward voltage of 2 to 2.4 V at 20 mA, spectral bandwidth of 20 nm, and an ESD threshold of 2000 V. It is moisture-sensitive with an MSL level 3 and must be handled with proper anti-static precautions.
WURTH ELEKTRONIK 155060RS73200 Red LED Specifications:
- Dimensions: Not specified
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +100°C
- Chip Technology: AllnGaP
- Emitting Color: Red
- Optical Properties: Wavelength 632 nm, Dominant 624 nm, Spectral Bandwidth 20 nm
- Electrical Properties: Forward Voltage 2-2.4 V at 20 mA, Peak Forward Current 30 mA, Reverse Voltage 5 V, Power Dissipation 48 mW
- Max. Reverse Current: 10 pA, ESD threshold: 2000 V
- Viewing Angle: 120°, typical
- Moisture Sensitivity Level: MSL 3
- Certifications: RoHS, REACH, Halogen Free
- Shelf life: Recommended use within 12 months of shipment
- Polymer: Waterclear lens, allnGaP chip
Buy the Wurth Elektronik Series SMT Red LED: 155060RS73200
Purchase the Wurth Elektronik Series155060RS73200 SMT Red LED online today to ensure exceptional brightness with a wavelength of 632 nm, high reliability, and compliance with international safety standards. This waterclear LED, suitable for surface mounting, offers luminous intensity between 45 to 150 millicandelas at 20 mA, making it ideal for a variety of electronic devices and displays. Its operation temperature range of -40°C to +85°C guarantees consistent performance in diverse environments. Buy now for fast delivery and start enhancing your electronic designs with superior lighting quality and dependable long-term performance.
Order your Wurth Elektronik Series155060RS73200 SMT Red LED today and give your electronics projects reliable brightness and high-quality performance.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 155060RS73200?
You can click on the BUY or RFQ button to purchase 155060RS73200 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 155060RS73200?
You can download the 155060RS73200 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 155060RS73200?
WURTH ELEKTRONIK
