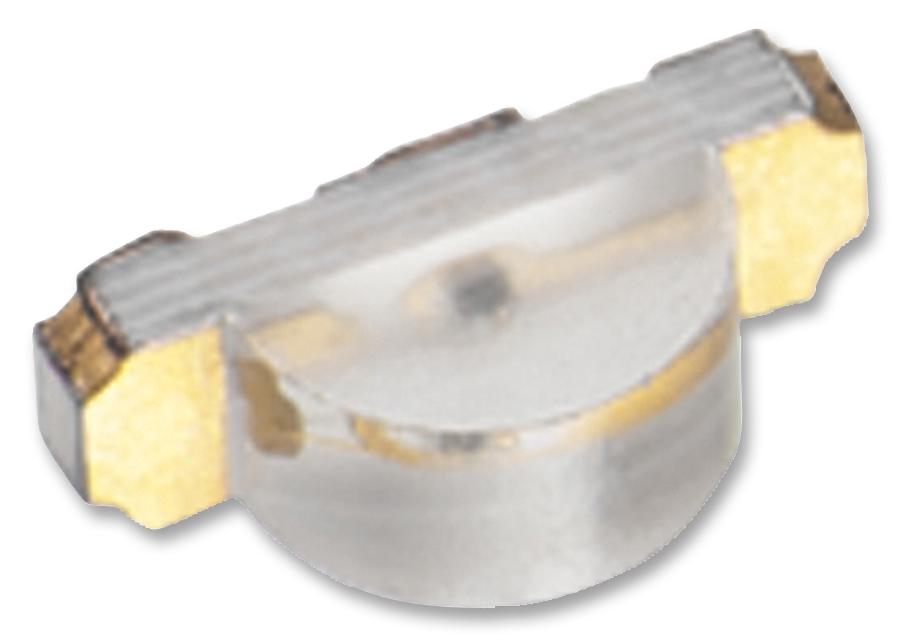

WURTH ELEKTRONIK 155124RS73200 Mono-color Side View LED
The WURTH ELEKTRONIK 155124RS73200 is a versatile SMT LED designed for various applications including indicator lights, backlighting, and general illumination. Its compact size and side-view design make it ideal for space-constrained applications. The LED features a red emitting color with a peak wavelength of 632nm and a luminous intensity ranging from 90 to 130 mcd. It is RoHS compliant and operates within a temperature range of -40°C to +85°C, ensuring reliable performance in diverse environments. The component is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 155124RS73200 Mono-color Side View LED Specifications:
- Dimensions: 3.2 ±0.2 mm, 1.0 ±0.2 mm, 0.5 ±0.15 mm, 1.5 ±0.2 mm, 2.0 ±0.2 mm
- Polarity Mark: Cathode: 0.6 typ.
- Recommended Land Pattern: 0.6 mm, 0.9 mm, 0.8 mm, 1.0 mm, 1.0 mm, 2.0 mm
- Peak Forward Current: 100 mA @ 1 kHz
- Continuous Forward Current: 25 mA
- Reverse Voltage: 5 V
- ESD Threshold (Human Body): 2000 V
- Emitting Color: Red
- Lens Type: Round
- Operating Temperature: -40 up to +85 °C
- Storage Conditions (Original Packaging): < 40 °C ; < 90 % RH
- Storage Conditions (Single Parts): -40 up to +85 °C
- Moisture Sensitivity Level (MSL): 3
- Peak Wavelength: 632 nm
- Dominant Wavelength: 624 nm
- Luminous Intensity: 90-130 mcd
- Forward Voltage: 2-2.4 V
- Spectral Bandwidth: 15 nm
- Reverse Current: ≤10 µA
- Viewing Angle: 120°
- Power Dissipation: 60 mW
- Chip Technology: AlInGaP
