WURTH ELEKTRONIK 156120GS82500 Monochrome LED
This is a high-quality SMD mono-color LED designed for reverse mount waterclear applications. It features a dome lens type with InGaN chip technology, emitting a vibrant green light at a peak wavelength of 520 nm and a dominant wavelength of 525 nm. The LED offers a luminous intensity ranging from 715 to 1500 mcd at 20 mA, with a forward voltage of 3.3 to 3.9 V. Suitable for precise illumination in electronic displays and signaling devices, it supports a wide operating temperature from -40°C to +85°C and includes moisture sensitivity level 3 for reliable performance in various environments.
WURTH ELEKTRONIK 156120GS82500 Monochrome LED Specifications:
- Chip Technology: InGaN
- Lens Type: Dome
- Emitting Color: Green
- Peak Wavelength: 520 nm
- Dominant Wavelength: 525 nm
- Luminous Intensity: 715 to 1500 mcd at 20 mA
- Forward Voltage: 3.3 to 3.9 V
- Reverse Voltage: 5 V
- Viewing Angle: 285° (±20°)
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C; 60% RH max.
- Moisture Sensitivity Level: MSL 3
- Maximum Power Dissipation: 78 mW
- Peak Forward Current: 60 mA
- Continuous Forward Current: 20 mA

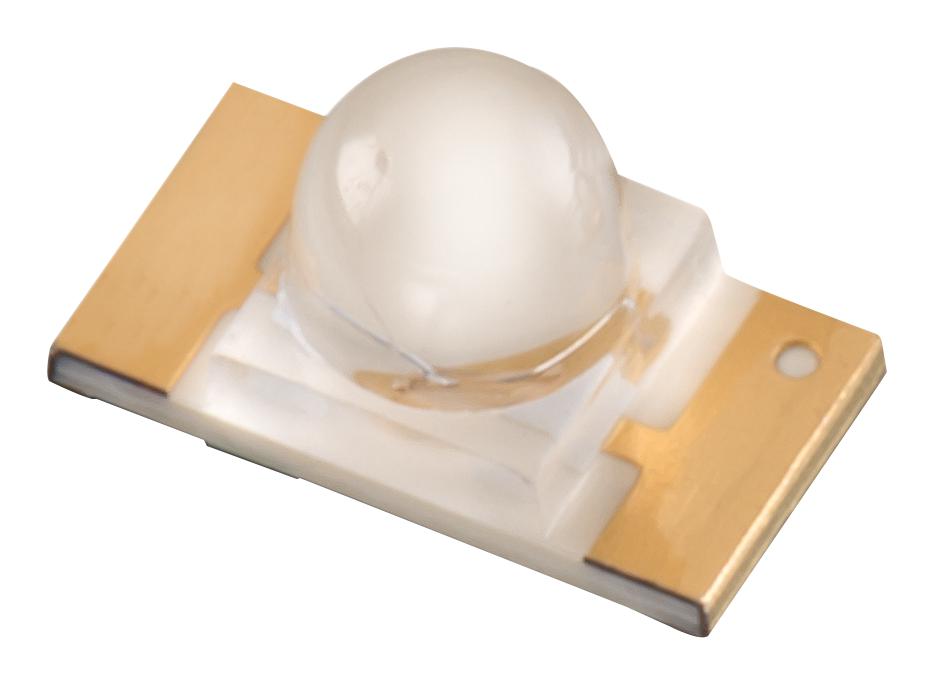

Buy the Buy Wirth Elektronik SMD Mono-color Part Number 156120GS82500 Online
Order the Wirth Elektronik monochrome LED with Part Number 156120GS82500 online today. This high-quality green SMD LED features a dome lens, a peak wavelength of 520 nm, and a luminous intensity up to 1500 mcd at 20 mA. Designed for reverse mount waterclear applications, it operates efficiently from -40°C to +85°C. Its compact size and reliable performance make it ideal for electronic displays, indicators, and signaling devices. Purchase now to get fast delivery and elevate your projects with top-tier LED technology.
Buy Wirth Elektronik 156120GS82500 now and experience unmatched reliability and performance in waterclear reverse mount LED lighting solutions.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 156120GS82500?
You can click on the BUY or RFQ button to purchase 156120GS82500 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 156120GS82500?
You can download the 156120GS82500 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 156120GS82500?
WURTH ELEKTRONIK
