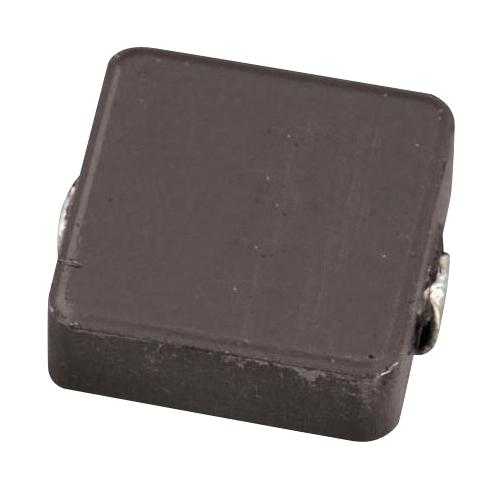

WURTH ELEKTRONIK 74437368220 Power Inductor
This Wurth Elektronik power inductor, suitable for electronic circuit applications, features a compact design with recommended dimensions of 13.6 mm by 5 mm. It offers a rated current of 35 A at 40 kHz, with low DC resistance of 740 mΩ at 20°C and high self-resonant frequency of 7 MHz, ensuring effective energy storage and filtering in power supplies. The inductor is configured for surface mounting, with specific soldering profiles to maintain reliability. Designed with RoHS and REACH compliance, it performs well under operating temperatures between -40°C to +125°C, making it ideal for industrial electronics requiring high current and compact form factors.
WURTH ELEKTRONIK 74437368220 Power Inductor Specifications:
- Dimensions: 13.6 mm x 5 mm
- Rated Current: 35 A at 40 kHz
- DC Resistance: 740 mΩ at 20°C
- Self resonant frequency: 7 MHz
- Operating temperature: -40°C to +125°C
- Storage temperature: -20°C to +40°C
- RoHS & REACH compliant
- Soldering profile: preheat Tmin 150°C, Tmax 200°C, peak temperature Tpeak 260°C
- Package classification: SMT surface mount
- Material: Ferrite core with copper windings
- Compliance: RoHS, REACH
Buy the Buy Wurth Elektronik Power Inductor Part Number 74437368220 Online
Discover the high-performance Wurth Elektronik power inductor with part number 74437368220. This compact surface-mount component handles up to 35A, features low resistance, and is ideal for power supply filtering. Its RoHS and REACH compliance ensure environmentally friendly usage. Designed for robust operation between -40°C and +125°C, it supports reliable industrial electronics applications. Purchase online today to enhance your electronic circuit’s efficiency, stability, and durability with this quality inductive component, backed by trusted manufacturer standards.
Buy Wurth Elektronik 74437368220 power inductor now and ensure high reliability and efficient power filtering for your electronic designs.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 74437368220?
You can click on the BUY or RFQ button to purchase 74437368220 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 74437368220?
You can download the 74437368220 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 74437368220?
WURTH ELEKTRONIK
