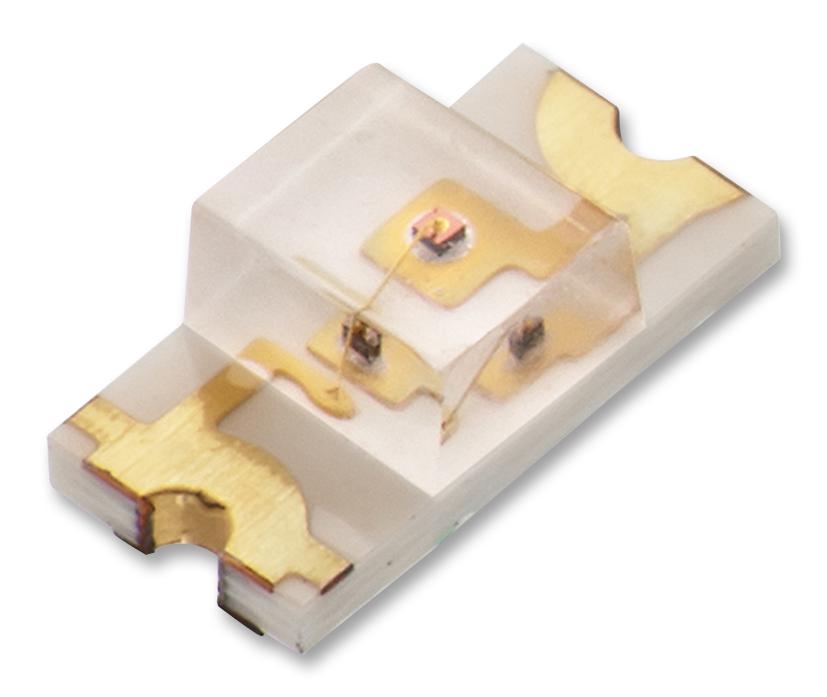

WURTH ELEKTRONIK 156120RS75000 Waterclear SMT LED
The 156120RS75000 is a high-quality SMT optoelectronic component designed for reverse mount applications, offering waterclear lenses and precise optical properties. This red-emitting diode features a rectangular lens, allnGaP chip technology, and complies with RoHS and REACH standards. Engineered for reliable performance with a maximum power dissipation of 60 mW, peak forward current of 100 mA, and an operating temperature range from -40°C to +85°C, it is suitable for diverse electronic and illumination applications requiring consistent brightness and longevity.
WURTH ELEKTRONIK 156120RS75000 Waterclear SMT LED Specifications:
- Power Dissipation: 60 mW
- Peak Forward Current: 100 mA at 1 kHz duty cycle
- Continuous Forward Current: 25 mA
- Reverse Voltage: 5 V
- ESD Threshold: 2000 V
- Emitting Color: Red
- Lens Type: Rectangular waterclear lens
- Operating Temperature: -40°C to +85°C
- Storage Conditions: < 40°C; < 90% RH, sealed packaging
- Materials: AllnGaP chip technology
- Optical Properties: Wavelength peak at 632 nm, dominant at 624 nm, luminance 35-60 mcd at 20 mA, spectral bandwidth 15 nm
- Viewing Angle: 140°, Forward Voltage: 2-2.4 V at 20 mA
- Certifications: RoHS, REACH, Halogen-free, IEC 61249-2-21
- Storage and Handling: Handle with ESD precautions, avoid impact, use compatible soldering profiles, store in original moisture-proof packaging for up to 12 months
Buy the Buy Wirth Elektronik Red LED Part Number 156120RS75000 Online
Purchase the Wirth Elektronik Series156120RS75000 Waterclear SMT LED online today, the perfect choice for reverse mount applications requiring reliable brightness and longevity. This high-performance red LED features RoHS and REACH compliance, waterclear rectangular lens, allnGaP chip technology, and precise optical properties. With robust specifications including 60 mW power dissipation, peak forward current of 100 mA, and a wide operating temperature range, it ensures consistent performance in diverse electronic and lighting applications. Shopping online guarantees fast delivery and authentic components for your projects.
Order your Wirth Elektronik Series156120RS75000 Waterclear SMT LED today and ensure your electronic projects benefit from dependable, high-brightness illumination.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 156120RS75000?
You can click on the BUY or RFQ button to purchase 156120RS75000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 156120RS75000?
You can download the 156120RS75000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 156120RS75000?
WURTH ELEKTRONIK
