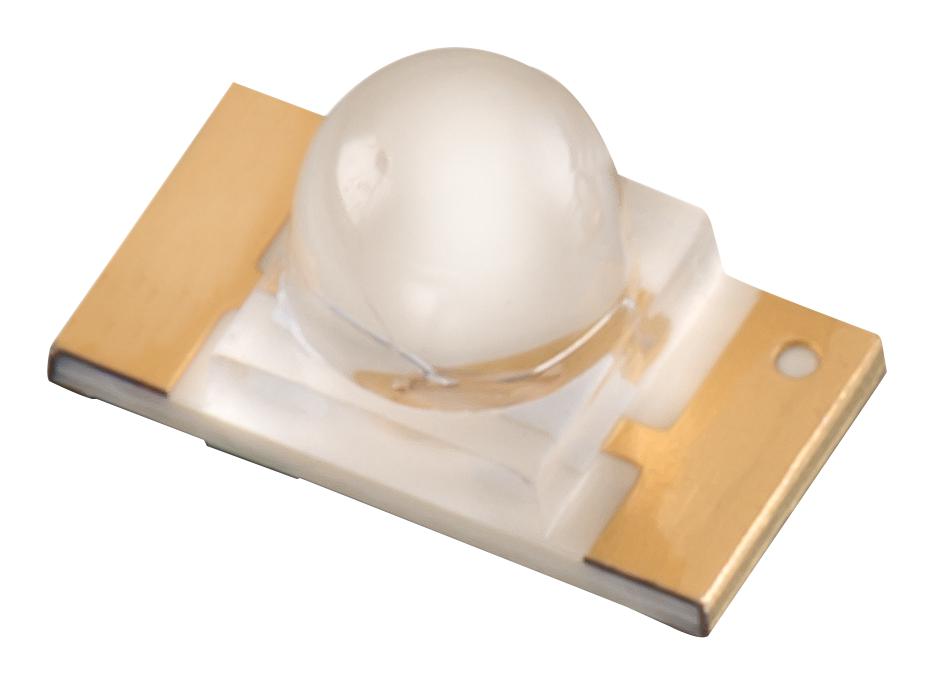

WURTH ELEKTRONIK 156120RS82500 Waterclear LED
Waterclear reverse mount SMD mono-color LED designed for high reliability and long life. Ideal for surface-mount applications with a dome lens and water-clear housing, offering bright red illumination. Suitable for use in various electronic devices requiring precise illumination and low power consumption, with specifications including maximum peak forward current of 40 mA, operating temperature from -40°C to +85°C, and a viewing angle of 20°. compliant with industry standards, it ensures durability and consistent brightness in compact design.
WURTH ELEKTRONIK 156120RS82500 Waterclear LED Specifications:
- Package Type: SMD Mono-color, reverse mount, water-clear housing
- Lens Type: Dome
- Color: Red
- Peak Forward Current: 40 mA
- Cont. Forward Current: 20 mA
- Reverse Voltage: 5 V
- Reverse Current: 100 µA
- Power Dissipation: 48 mW
- Peak Wavelength: 632 nm
- Dominant Wavelength: 624 nm
- Luminous Intensity: 450 to 1100 mcd at 20 mA
- Forward Voltage: 2.2 V at 20 mA
- Spectral Bandwidth: 20 nm
- Viewing Angle: 20°
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitive Level: MSL 3
- Reflow Profile: Preheat 150°C–200°C, Max. Ramp 3°C/sec, Max. Tpeak 260°C
- Packaging: Tape and reel min. 160 mm carrier tape, cover tape min. 400 mm
- Compliance: Industry standards including DIN EN 62471:2008 (risk groups 0 to 2)
Buy the Buy WURTH ELEKTRONIK Waterclear Reverse Mount LED Part Number 156120RS82500 Online
Order the WURTH ELEKTRONIK Waterclear LED with part number 156120RS82500 online today. Designed for reverse mounting with a dome lens, this compact LED offers bright red illumination and low power consumption. Its operating temperature range of -40°C to +85°C ensures durability in various environments. Perfect for surface-mount applications, it provides a viewing angle of 20° and consistent luminous intensity of 450 to 1100 mcd at 20 mA. Easy to incorporate into your electronics for reliable performance and long-lasting brightness.
Buy WURTH ELEKTRONIK 156120RS82500 now and experience reliable high-brightness illumination for your electronics projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 156120RS82500?
You can click on the BUY or RFQ button to purchase 156120RS82500 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 156120RS82500?
You can download the 156120RS82500 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 156120RS82500?
WURTH ELEKTRONIK
