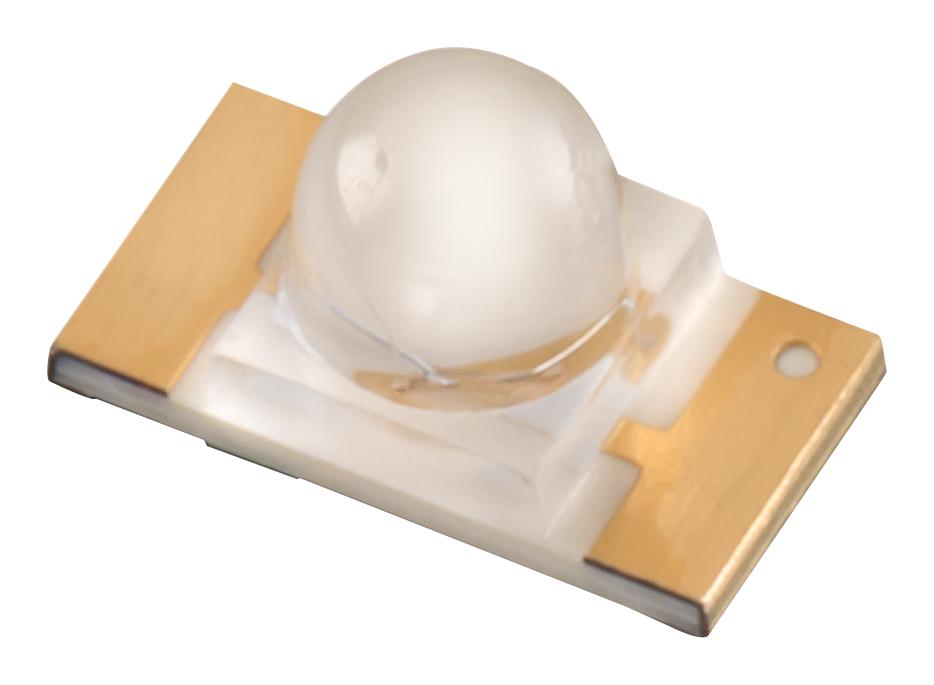

WURTH ELEKTRONIK 156120SS82500 SMD Mono-color LED
The WL-SMRW SMD Mono-color LED features reverse mount, waterclear lens technology with a super red emission color. Operating efficiently within -40°C to +85°C, it offers a peak wavelength of 645 nm at 20 mA. Designed for surface-mount applications, it ensures high reliability with ESD thresholds of 1000 V and a maximum peak forward current of 40 mA. Its compact size and sealed design make it ideal for diverse industrial, signal, and indicator uses, offering consistent luminous intensity and spectral properties for robust electronic systems.
WURTH ELEKTRONIK 156120SS82500 SMD Mono-color LED Specifications:
- Emission Color: Super Red
- Wavelength: Peak 645 nm at 20 mA, Dominant 630 nm
- Luminous Intensity: 360 to 900 mcd at 20 mA
- Forward Voltage: 2.0 to 2.4 V at 20 mA
- Viewing Angle: 20°
- Peak Wavelength: 645 nm
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C, 60% RH max
- Peak Forward Current: 40 mA
- Continuous Forward Current: 20 mA
- Reverse Voltage: 5 V
- ESD Threshold: 1000 V
- Package: 1206 SMD Reverse Mount Waterclear
- Max Power Dissipation: 48 mW
- Moisture Sensitivity Level: MSL 3
- Soldering Profile Compliance: IPC/JEDEC J-STD-020E
- Dimensions: Standard 1206 size, typical package body size as per datasheet
Buy the Wirth Reliable LED for Industrial Applications
Order the advanced Wirth SMD Mono-color LED online today and enhance your electronic systems with high-quality, reliable lighting solutions. Designed for reverse mount, waterclear applications, it offers consistent luminous intensity, ideal wavelength, and robust performance within industrial and signal equipment. Easy to integrate into your designs, these LEDs ensure long-term durability and high efficiency. Take advantage of fast delivery and expert support to optimize your manufacturing and repair projects. Purchase now for dependable, professional-grade lighting components that meet your technical requirements.
Buy Wirth electronic components now and experience unmatched reliability and performance in your industrial projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 156120SS82500?
You can click on the BUY or RFQ button to purchase 156120SS82500 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 156120SS82500?
You can download the 156120SS82500 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 156120SS82500?
WURTH ELEKTRONIK
