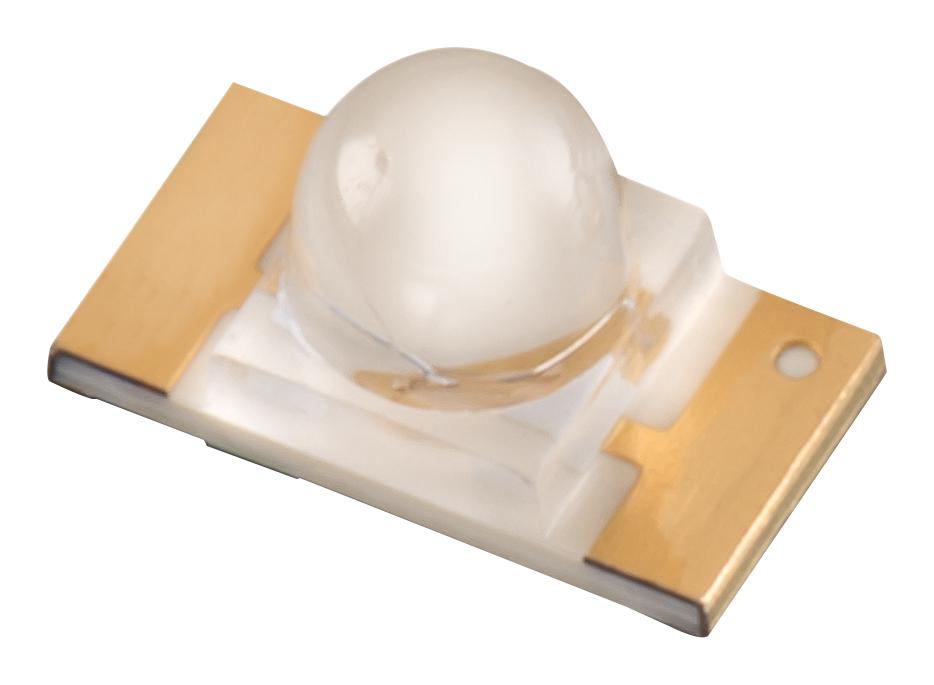

WURTH ELEKTRONIK 156120VS82500 LED Indicator
Waterclear reverse mount LED with bright green emission ideal for indicator and display applications. Featuring dome lens type, operating temperature from -40°C to +85°C, and high ESD threshold of 1000V, it ensures reliable performance in demanding environments. The LED has a luminous intensity ranging from 360 to 1050 med at 20 mA and forward voltage of 2.24 V. Suitable for various electronic projects needing efficient and durable indicator lights, offering excellent optical properties and robust specifications to meet industrial standards.
WURTH ELEKTRONIK 156120VS82500 LED Indicator Specifications:
- Reverse mount, waterclear LED with dome lens
- Emitting Color: Bright Green
- Operating Temperature: -40°C to +85°C
- Peak Wavelength: 575 nm
- Dominant Wavelength: 573 nm
- Luminous Intensity: 360 to 1050 med at 20 mA
- Forward Voltage: 2.24 V at 20 mA
- Spectral Bandwidth: 15 nm
- Reverse Voltage: 5 V
- Viewing Angle: 20°
- ESD Threshold: 1000 V
- Max Power Dissipation: 48 mW
- Peak Forward Current: 40 mA
- Continuous Forward Current: 20 mA
- Storage Temperature: -40°C to +85°C
- Max Packaging: Tape and Reel, minimum reel length 160 mm
Buy the Wirth Elektronik Series WL-SMRW LED: 156120VS82500
Purchase Wirth Elektronik WL-SMRW LED online now to ensure high-quality, reliable indicator lighting for your electronic or industrial applications. With bright green emission, dome lens, wide temperature range from -40°C to +85°C, and luminous intensity between 360 and 1050 med, this reverse-mount LED guarantees excellent optical performance and durability. Its electrical specifications include a forward voltage of 2.24 V at 20 mA and an ESD threshold of 1000V, making it suitable for demanding environments. Easy to integrate, it is perfect for panel indicators, displays, and warning signals, ensuring a long-lasting, reliable connection for industrial lighting needs.
Get Wirth Elektronik WL-SMRW LED today—built for precision, durability, and efficient indicator lighting in your industrial or electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 156120VS82500?
You can click on the BUY or RFQ button to purchase 156120VS82500 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 156120VS82500?
You can download the 156120VS82500 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 156120VS82500?
WURTH ELEKTRONIK
