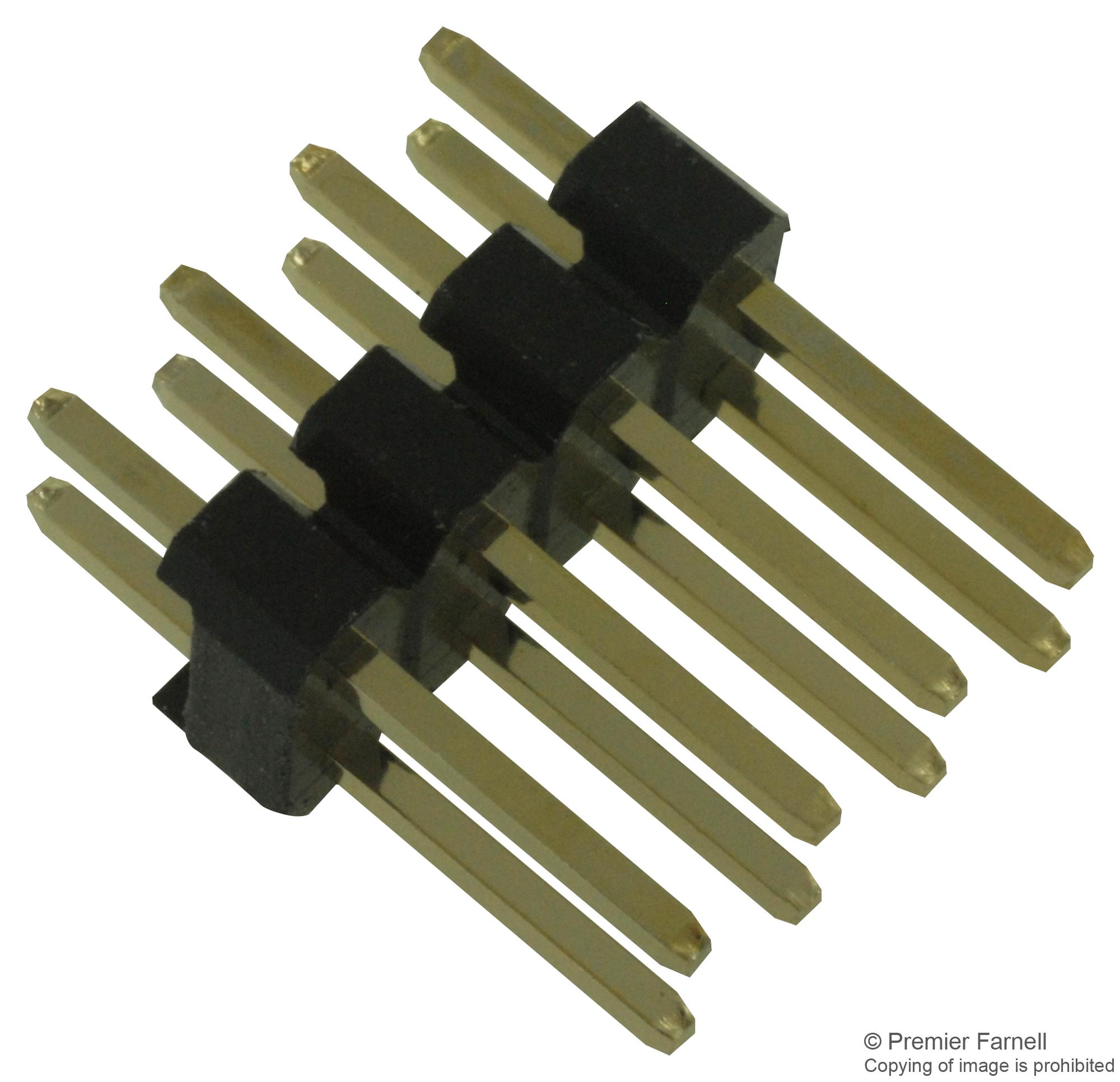

WURTH ELEKTRONIK 61300821121 Dual Pin Header
The 61300821121 is an 8-position, 2-row, black through-hole vertical dual pin header with stamped contacts and a 2.54mm pitch. This header features gold-plated copper alloy contacts and a PBT insulator, ensuring durability and reliable electrical connection. It is compatible with multiple mating connectors, including parts with numbers such as 609002115121, 6100xx21821, 6100xx243021, 6130xx216921, 6130xx21821, 6130xx243121, and 6130xx25721. The component has a current rating of 3A, a voltage rating of 250VAC, and complies with UL94V-0 flammability standards. It supports JEDEC lead-free wave soldering processes and is suitable for industrial applications.
WURTH ELEKTRONIK 61300821121 Dual Pin Header Specifications:
- Number of Positions: 8
- Number of Rows: 2
- Color: Black
- Material: Copper Alloy, PBT Insulator
- Contact Plating: Gold
- Pitch: 2.54 mm
- Current Rating: 3A
- Voltage Rating: 250VAC
- Flammability Rating: UL94V-0
- Mounting Style: Through-hole
- Contact Type: Stamped
- Compliance: UL, RoHS
- Soldering Process: JEDEC lead-free wave soldering
- Operating Temperature: -40°C to +105°C
Buy the WURTH ELEKTRONIK 61300821121 – Reliable Dual Pin Header for Industrial Applications
Purchase the durable and reliable dual pin header with gold-plated contacts and UL94V-0 flammability rating online today. Designed for industrial electronic systems, this component features a 2.54mm pitch, rated 3A and 250VAC, ensuring optimal electrical performance and safety. Compatible with JEDEC wave soldering processes, it offers quick and easy assembly for various industrial applications. Investing in this high-quality connector guarantees long-term durability, excellent connectivity, and compliance with international standards—order now to secure your supply of dependable connector solutions.
Get WURTH ELEKTRONIK 61300821121 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61300821121?
You can click on the BUY or RFQ button to purchase 61300821121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61300821121?
You can download the 61300821121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61300821121?
WURTH ELEKTRONIK
